Overview - Wheel Bearing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

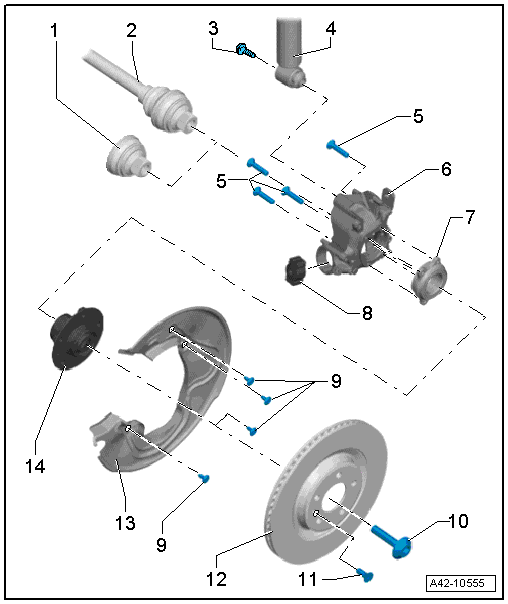

- Stub Axle
- Installed on vehicles with front wheel drive
- Drive Axle
- Installed on vehicles with all wheel drive
- There are different versions .
- Bolt
- 100 Nm +180°
- Always replace if removed
- Air Spring Damper
- Bolt
- 80 Nm +90°
- Always replace if removed
- Wheel Bearing Housing
- Removing and installing, refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
- Ball BearingCAUTION:
- Avoid contaminating with dirt and damaging the seal when lifting, setting down/storing, refer to Fig 2.
- Wheel bearing unit, removing and installing, refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
- For servicing the wheel bearing unit, refer to WHEEL BEARING UNIT, SERVICING .
- Bonded Rubber Bushing
- Replacing, refer to WHEEL BEARING HOUSING BONDED RUBBER BUSHING, REPLACING .
- Bolt
- 10 Nm
- Collar Screw
- 200 Nm +180°
- Always replace if removed
- Bolt
- 5 Nm
- Brake Rotor
- Brake Rotor Cover Plate
- Wheel HubCAUTION:
- Avoid contaminating with dirt and damaging the seal when lifting, setting down/storing, refer to Fig 2.
- Wheel bearing unit, removing and installing, refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
- For servicing the wheel bearing unit, refer to WHEEL BEARING UNIT, SERVICING .
- The wheel bearing -1- must always face up.
- Always set the wheel bearing down on the wheel hub -2-.
The same procedure also applies to the wheel bearing without a wheel hub.
- Never reach into the inside when lifting the wheel bearing.
- Hold the wheel bearing only on the outside.
