Suppressor -C24-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and disconnect the ground cable from the battery; vehicles without high voltage system. Refer to BATTERY, DISCONNECTING AND CONNECTING, VEHICLES WITHOUT HIGH VOLTAGE SYSTEM , vehicles with high voltage system. Refer to Battery -A- AND Auxiliary Battery -A1-, DISCONNECTING AND CONNECTING .

-- Remove the bolts -1 and 3- and remove the right upper longitudinal member -2-.

Fig 1: Identifying Upper Right Longitudinal Member

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows- and remove the cover -1- for the right plenum chamber E-box.

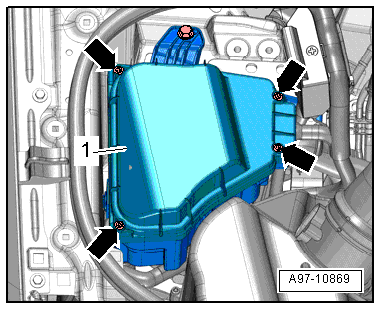

Fig 2: Identifying Engine Compartment E-Box Cover Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Open the retainers -arrow- and remove the relay panel and fuse panel -1-.

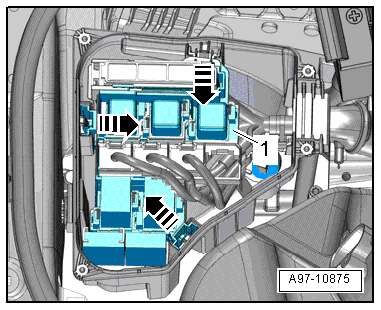

Fig 3: Relay Panel And Fuse Panel

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

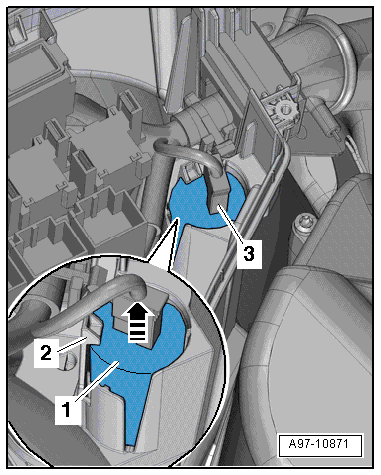

Fig 4: Suppressor, Tab And Connector

Courtesy of AUDI OF AMERICA, LLC

-- Open the tab -2- and remove the Suppressor -C24- -1- upward -arrow-.
