Fuse Panel B -SB- WITH FUSE CARRIER, REMOVING AND INSTALLING, INSTRUMENT PANEL ON RIGHT SIDE: Removing

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

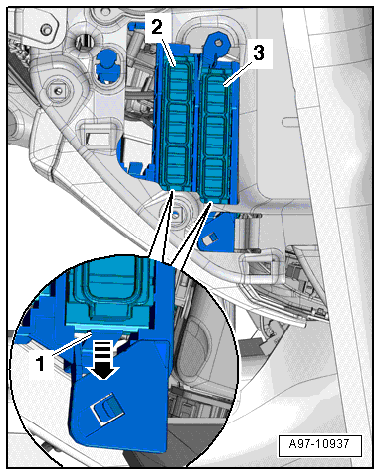

-- Open the clip -1- in the direction of the -arrow- and remove the fuse panels -2- and -3- out of the fuse panel B.

Fig 1: Fuse Panels

Courtesy of AUDI OF AMERICA, LLC

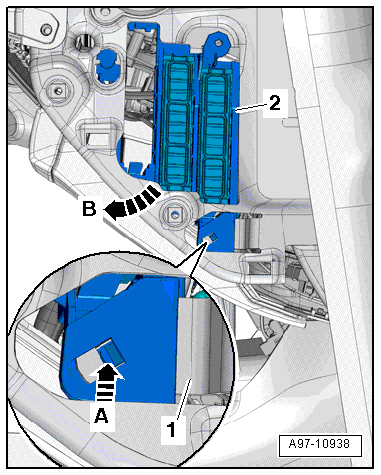

-- Open the clips -arrow A- and remove fuse panel B -2- in the direction of -arrow B- on the central tube -1- for the instrument panel.

Fig 2: Fuse Panel And Central Tube

Courtesy of AUDI OF AMERICA, LLC

-- Remove fuse panel B.
