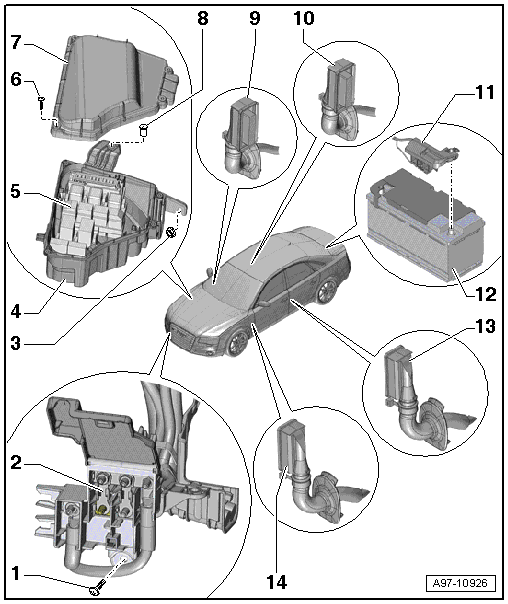

Overview - Relay Panels, Fuse Panels And E-Boxes Component Location
- Bolt
- 3 Nm
- Fuse Panel
- Removing and installing. Refer to FUSE HOLDER, FRONT END, REMOVING AND INSTALLING .
- Nut
- 3 Nm
- E-Box, in Plenum Chamber, Right Side
- Removing and installing. Refer to E-BOX, REMOVING AND INSTALLING .
- With Suppressor -C24-, removing and installing. Refer to Suppressor -C24-, REMOVING AND INSTALLING .
- Relay and Fuse Carrier
- With Fuse Panel A -SA-
- Removing and installing. Refer to FUSE PANEL IN E-BOX, REMOVING AND INSTALLING .
- Relay/fuse panel in engine compartment E-box on the right side
- Removing and installing. Refer to E-BOX RELAY AND FUSE PANELS, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Quantity: 4
- Cover
- For E-Box, in Plenum Chamber, Right Side
- Remote Start Connection
- 20 Nm
- Negative service terminal
- Right Front Door Cut-Off Connector
- Right Rear Door Cut-Off Connector
- Fuse Panel D -SD-
- In the luggage compartment on the battery
- Removing and installing:
- Vehicles without high voltage system. Refer to Fuse Panel D -SD- IN LUGGAGE COMPARTMENT, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH VOLTAGE SYSTEM
- Vehicles with high voltage system. Refer to Fuse Panel D -SD- IN LUGGAGE COMPARTMENT, REMOVING AND INSTALLING, VEHICLES WITH HIGH VOLTAGE SYSTEM
- Battery
- Left Rear Door Cut-Off Connector
- Left Front Door Cut-Off Connector

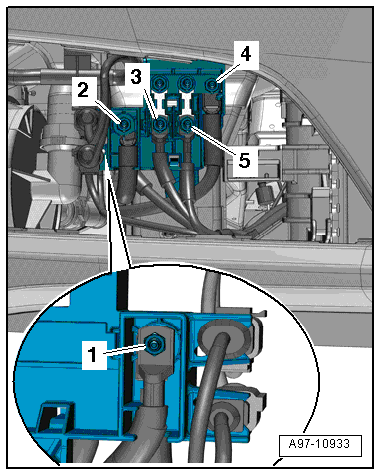

Tightening Specification: Fuse Panel
- Ground wires - 7.5 Nm
- Ground connection for the ground wire on the longitudinal member - 9 Nm
- Coolant Fan Fuse -S42- - 7.5 Nm
- Terminal 30 Wire Junction 2 -TV22- - 9 Nm
- Coolant Fan Second Speed Fuse -S104- - 7.5 Nm
Tightening Specification Fuse Panel DSD
- Electric wire - 7.5 Nm
- Nut - 9 Nm
- Nut - 9 Nm
- Fuse Panel D -SD- in the luggage compartment
- Positive wire to the engine - 7.5 Nm
- Bolt - 2.5 Nm
- Battery Interrupt Igniter -N253-. Refer to Battery Interrupt Igniter, Removing and Installing .
- Electric wire - 18 Nm
