Overview - Relay Carrier, Instrument Panel, E-Boxes Fuse Carrier, A-Pillar Component Location

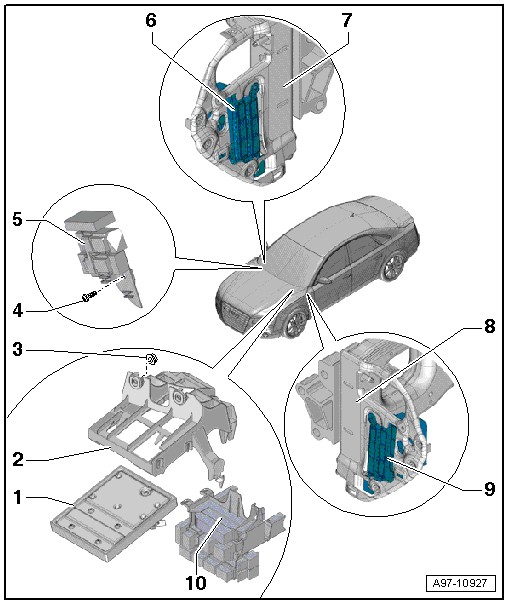

Fig 1: Relay Carrier, Instrument Panel, E-Boxes Fuse Carrier, A-Pillar Component Location Overview

Courtesy of AUDI OF AMERICA, LLC

1. Vehicle Electrical System Control Module -J519-.
   • Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
2. Mount
   • For the Vehicle Electrical System Control Module -J519- and the relay/fuse panel.
   • Removing and installing. Refer to RELAY/FUSE PANEL MOUNT WITH Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
3. Nut
   • 3 Nm
   • Quantity: 2
4. Bolt
   • 4 Nm
5. 2-chamber Relay/Fuse Panel, Right A-Pillar
   • There are different versions. Refer to the Parts Information.
   • Removing and installing. Refer to RIGHT A-PILLAR CONNECTOR STATION, REMOVING AND INSTALLING .
6. Fuse Panel B -SB-
   • On the right of the instrument panel
   • Removing and installing. Refer to Fuse Panel B -SB- WITH FUSE CARRIER, REMOVING AND INSTALLING, INSTRUMENT PANEL ON RIGHT SIDE .
7. Right Central Tube
8. Left Central Tube
9. Fuse Panel C -SC-
   • On the left side of the instrument panel
   • Removing and installing. Refer to Fuse Panel C -SC- WITH LEFT INSTRUMENT PANEL FUSE PANEL, REMOVING AND INSTALLING .
10. 7-Pin Relay/Fuse Panel
    • Under the instrument panel on the left side
    • Removing and installing. Refer to RELAY AND FUSE PANELS BEHIND INSTRUMENT PANEL ON DRIVER SIDE, REMOVING AND INSTALLING .

Tightening Specification: Positive Cables on a TDI Engine

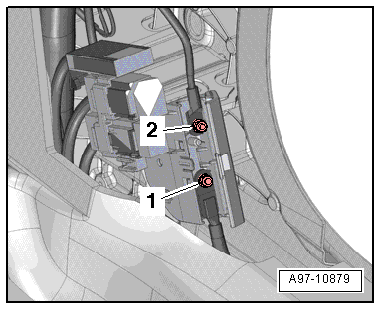

Fig 2: Positive Cables On A TDI Engine

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the wires -1- and -2- to 7.5 Nm.
