Battery Cut-Out Relay -J7-, REMOVING AND INSTALLING: Removing

-- Remove the wire junction. Refer to Wire Junction -TV1-, REMOVING AND INSTALLING .

-- Open the retainers -arrows- with a small screwdriver and remove the cover -2- from the wire junction -1-.

Fig 1: Wire Junction And Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -2 and 5-.

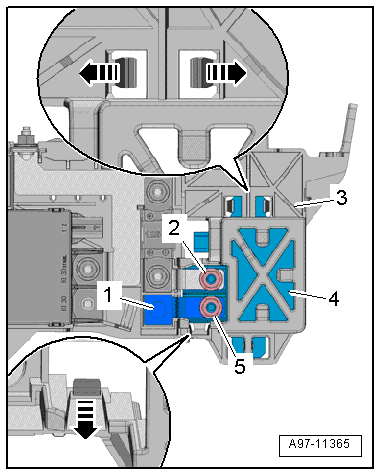

Fig 2: Removing Battery Cut-Out Relay

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connecting piece -1-.

-- Open the tabs -arrows- and remove the battery cut-out relay -4- from the wire junction -3-.
