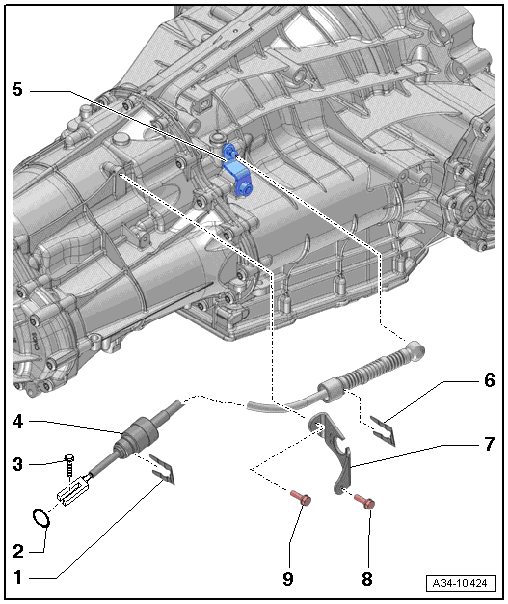

Overview - Selector Lever Cable
Courtesy of AUDI OF AMERICA, LLC
- Clip
- For the selector lever cable on the selector mechanism function unit
- O-Ring
- Bolt
- 13 Nm
- For selector lever cable adjustment
- Attached to the selector mechanism function unit
- Selector Lever Cable
- Do not bend
- Different versions depending on the vehicle
.
- Removing and installing. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING
- The selector lever cable must be replaced if the rubber grommet is damaged.
- Lubricate the ball socket lightly with Polycarbamide Grease G 052 142 A2 before installing.
- Make sure the rubber grommet on the transmission side is not twisted when installing.
- Adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING
- Perform "Guided Functions
" using the Vehicle Diagnostic Tester after adjusting the selector lever cable. Refer to TRANSMISSION GUIDED FUNCTIONS
.
- Selector Lever
- Clip
- For attaching the selector lever cable to the cable bracket
- Lock nut 13 Nm depending on the version
- Cable Mounting Bracket
- Bolt
- Bolt
