Overview - Radiator/Coolant Fan

WARNING: This page is about a different car, the 2012 Audi Q5, 2011 Audi Q5, 2010 Audi Q5, and 2009 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

There is a risk of injury if the radiator fan turns on by itself.

Disconnect the connectors before working near the fan shroud.

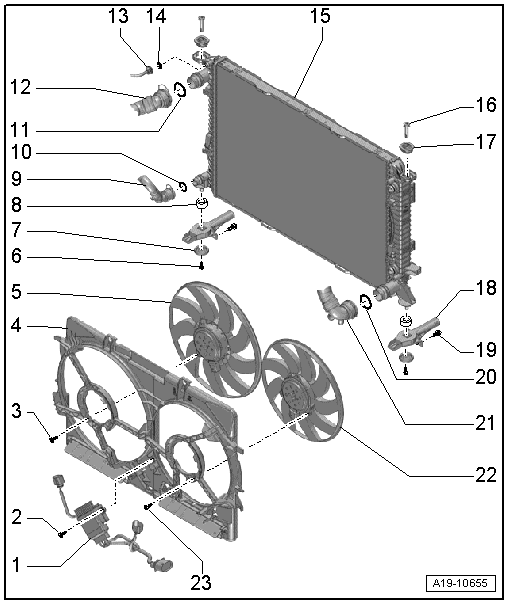

Fig 1: Identifying Radiator And Coolant Fan Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Coolant Fan Control Module -J293-
- Either separate or integrated in the Coolant Fan -V7-, depending on equipment
- Separates Coolant Fan Control Module -J293-, removing and installing Coolant Fan Control Module -J293- / Coolant Fan Control Module 2 -J671-, REMOVING AND INSTALLING
Bolt
- 4.5 Nm
Bolt
- 5 Nm
Fan Shroud
- Removing and installing, refer to FAN SHROUD, REMOVING AND INSTALLING .
Coolant Fan -V7-
- With integrated Coolant Fan Control Module -J293-, depending on equipment
- Coolant Fan - V7-, Removing and Installing, refer to COOLANT FAN, REMOVING AND INSTALLING .
Bolt
- 3.5 Nm
Backing Plate
Rubber Bushing
- For the radiator
Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator, refer to Fig 2
O-Ring
- Replace
O-Ring
- Replace
Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator, refer to Fig 2
Coolant Hose
- To the coolant reservoir
O-Ring
- Replace
Radiator
- Removing and installing with the fan shroud, refer to RADIATOR, REMOVING AND INSTALLING .
- Change the coolant after replacing
Retaining Pin
- Disengage and remove using screwdriver
Rubber Buffer
Radiator Bracket
Bolt
O-Ring
- Replace
Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator, refer to Fig 2
Coolant Fan 2 -V177-
- Not with the 400 W fan activation
- Removing and installing, refer to COOLANT FAN, REMOVING AND INSTALLING .
Bolt
- 5 Nm

Fig 2: Connecting Coolant Hose Coupling

Courtesy of AUDI OF AMERICA, LLC

-- Remove the old O-ring -2- in the coolant hose -3-.

-- Coat the new O-ring with coolant and install it in the coolant hose.

-- Press the coolant hose onto the connection -1- until it engages audibly.

-- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
