Overview - Radiator/Coolant Fan

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

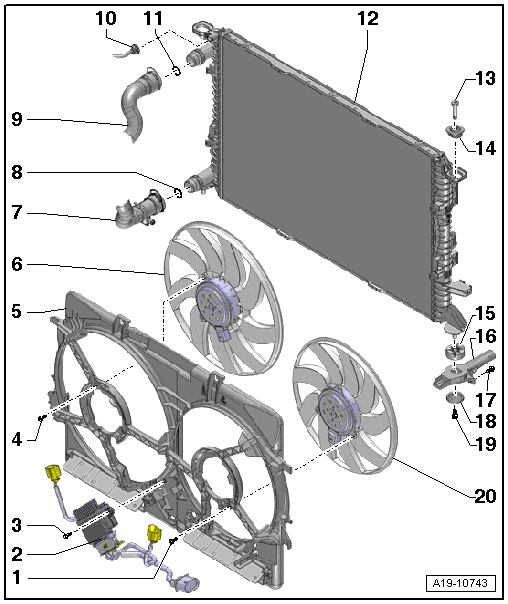

Fig 1: Radiator, Fan Shroud And Coolant Fan Overview

Courtesy of AUDI OF AMERICA, LLC

Screw
- 5 Nm
Coolant Fan Control Module -J293-
- Removing and installing, refer to Coolant Fan Control Module -J293-, REMOVING AND INSTALLING .
Screw
- 2.5 Nm
Bolt
- 5 Nm
Fan Shroud
- Removing and installing, refer to FAN SHROUD, REMOVING AND INSTALLING .
Coolant Fan -V7-
- Removing and installing, refer to Coolant Fan - V7-, REMOVING AND INSTALLING .
Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator, refer to Fig 2
O-Ring
- Replacing
Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator, refer to Fig 2
Coolant Hose
- To the coolant reservoir
O-Ring
- Replacing
Radiator
- Removing and installing with the fan shroud, refer to
  - Non-hybrid vehicles, refer to RADIATOR, REMOVING AND INSTALLING NON-HYBRID VEHICLES .
  - Hybrid vehicles, refer to RADIATOR, REMOVING AND INSTALLING, HYBRID VEHICLES .
- After replacing, replace entire amount of coolant.
Retaining Pin
- Disengage and remove using screwdriver
Rubber Buffer
Rubber Bushing
- For the radiator
Radiator Bracket
Bolt
- 5.5 Nm
Backing
Bolt
- 4.5 Nm
Coolant Fan 2 -V177-
- Removing and installing, refer to Coolant Fan - V7-, REMOVING AND INSTALLING .

Fig 2: Connecting Coolant Hose Coupling

Courtesy of AUDI OF AMERICA, LLC

-- Remove the old O-ring -2- in the coolant hose -3-.

-- Coat the new O-ring with coolant and install it in the coolant hose.

-- Press the coolant hose onto the connection -1- until it engages audibly.

-- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
