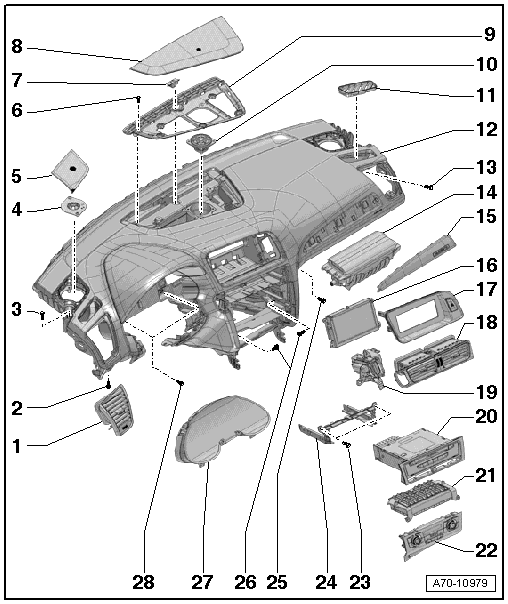

Overview - Instrument Panel
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- Side Instrument Panel Vent
- Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, SIDE INSTRUMENT PANEL VENT .
- Bolt
- 3 Nm
- Quantity: 2
- Bolt
- 3 Nm
- Quantity: 2
- Mid-range Speaker
- Equipment levels
- Removing and installing. Refer to Removing .
- Side Speaker Trim
- Equipment levels
- Removing and installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING, SIDE SPEAKER TRIM .
- Bolt
- 1.5 Nm
- Quantity: 6
- Sunlight Photo Sensor -G107-
- Removing and installing. Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .
- Center Speaker Trim
- Equipment levels
- Removing and installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING, CENTER SPEAKER .
- Upper Center Defroster Vent
- Removing and installing. Refer to FRONT CENTER DEFROSTER VENT, REMOVING AND INSTALLING .
- Mid-range Speaker
- Equipment levels
- Removing and installing. Refer to Removing .
- Upper Side Defroster Vent
- Instrument PanelWARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Follow the allocation of the airbag to the instrument panel.
- Removing and installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 2
- Front Passenger AirbagWARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Follow the allocation of the airbag to the instrument panel.
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Locking and activating possible with key switch
- Removing and installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
- Trim Molding
- For the instrument panel
- Removing and installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
- MMI Screen
- Removing and Installing. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING .
- Cover
- for MMI screen
- Removing and installing. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING .
- Center Instrument Panel Vent
- Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING, CENTER INSTRUMENT PANEL VENT .
- Access/Start Authorization Switch -E415-
- Removing and Installing. Refer to Access/Start Authorization Switch -E415-, REMOVING AND INSTALLING .
- Trim, Removing and Installing. Refer to ACCESS/START AUTHORIZATION SWITCH TRIM, REMOVING AND INSTALLING .
- Radio/Navigation System
- Equipment levels
- Radio removing and installing. Refer to RADIO, REMOVING AND INSTALLING .
- Navigation system removing and installing. Refer to NAVIGATION SYSTEM .
- Front Information Display Control Head Module -J523-
- Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Climatronic Control Module -J255-
- Equipment levels
- Bolt
- 3 Nm
- Quantity: 4
- Installation Frame
- For the radio/navigation system
- Equipment levels
- Removing and installing. Refer to RADIO/NAVIGATION SYSTEM FRAME, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Bolt
- 3 Nm
- Quantity: 2
- Instrument Cluster
- Removing and installing. Refer to the appropriate Service Information .
- Bolt
- 3 Nm
- Quantity: 2
