Refrigerant Lines To Rear Battery Cooling Module, Removing And Installing, On Vehicle Floor: Removing

-- Turn off the ignition.

-- Discharge the refrigerant circuit. Refer to USING SERVICE STATION . For additional information, refer to OVERVIEW - REFRIGERANT CIRCUIT, NOT OPENING THE REFRIGERANT CIRCUIT, VEHICLES WITHOUT HIGH VOLTAGE SYSTEM  and OVERVIEW - REFRIGERANT CIRCUIT, OPENING THE REFRIGERANT CIRCUIT, VEHICLES WITHOUT HIGH VOLTAGE SYSTEM  (Refrigerant R134a, Servicing; Refrigerant Circuit, Using Service Station).

-- Remove the aerodynamic trim panel on the left side. Refer to OVERVIEW - UNDERBODY PANELS .

-- Remove the EVAP canister. Refer to EVAP CANISTER, REMOVING AND INSTALLING .

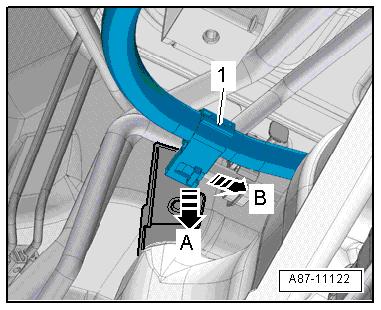

-- Open the retainer -arrow A-, pull it to the right -arrow B- and free up the wire -1- on the bracket.

Fig 1: Removing Wire Retainer

Courtesy of AUDI OF AMERICA, LLC

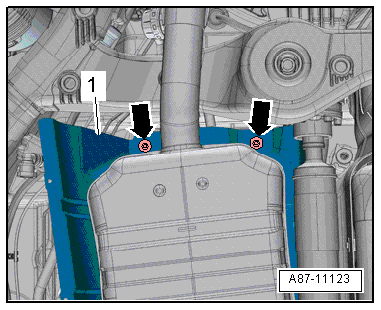

-- Remove the nuts -arrows- and move the heat shield -1- slightly downward.

Fig 2: Exhaust Heat Shield Nuts

Courtesy of AUDI OF AMERICA, LLC

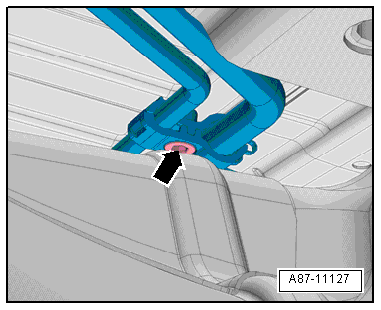

-- Remove the nut -arrow- from the bracket for the refrigerant pipes.

Fig 3: Identifying Refrigerant Pipe Bracket Nut

Courtesy of AUDI OF AMERICA, LLC

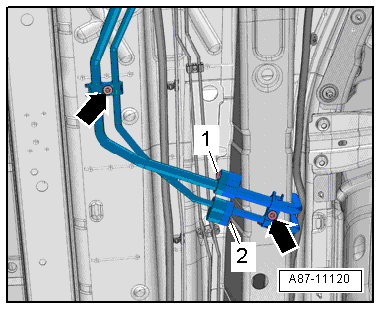

-- Remove the nuts -arrows- and bolts -1 and 2- and disconnect the refrigerant lines.

Fig 4: Identifying Refrigerant Line Components

Courtesy of AUDI OF AMERICA, LLC

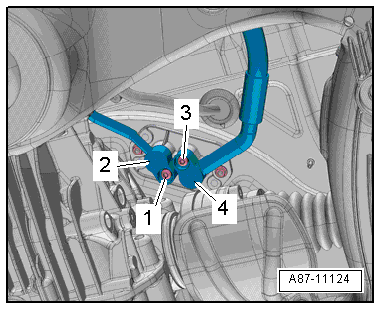

-- Remove the bolts -1 and 3-. Disconnect and remove the refrigerant pipes -2 and 4-.

Fig 5: Identifying Refrigerant Line Components

Courtesy of AUDI OF AMERICA, LLC
