Overview - Refrigerant Lines

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

On vehicles with a high voltage system (hybrid vehicles)

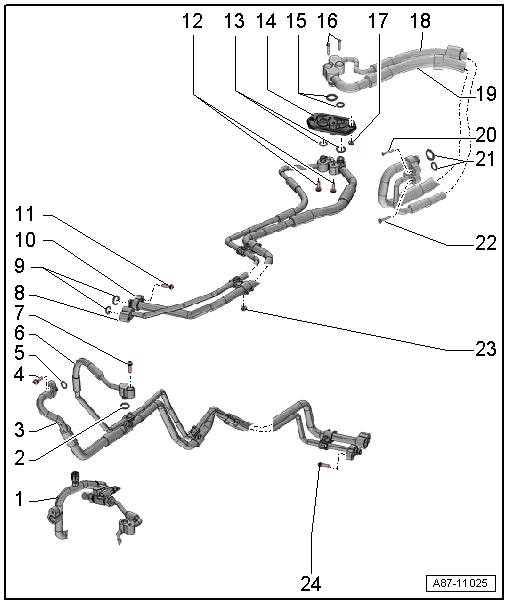

Fig 1: Refrigerant Lines To Battery Cooling Module

Courtesy of AUDI OF AMERICA, LLC

High Pressure Side Refrigerant Line
- Inside the engine compartment
O-Ring Seal
Low Pressure Side Refrigerant Line
- In the front on the floor panel
- Removing and installing. Refer to REFRIGERANT LINES TO FRONT BATTERY COOLING MODULE, REMOVING AND INSTALLING, ON VEHICLE FLOOR .
Bolt
- Tightening specification: 9 Nm (bolts with a M6 thread) and 25 Nm (bolts with a M8 thread).
O-Ring Seal
High Pressure Side Refrigerant Line
- In the front on the floor panel
- Removing and installing. Refer to REFRIGERANT LINES TO FRONT BATTERY COOLING MODULE, REMOVING AND INSTALLING, ON VEHICLE FLOOR .
Bolt
- Tightening specification: 9 Nm (bolts with a M6 thread) and 25 Nm (bolts with a M8 thread).
High Pressure Side Refrigerant Line
- In the rear on the floor panel
- Removing and installing. Refer to REFRIGERANT LINES TO REAR BATTERY COOLING MODULE, REMOVING AND INSTALLING, ON VEHICLE FLOOR .
O-Ring Seals
Low Pressure Side Refrigerant Line
- In the rear on the floor panel
- Removing and installing. Refer to REFRIGERANT LINES TO REAR BATTERY COOLING MODULE, REMOVING AND INSTALLING, ON VEHICLE FLOOR .
Bolt
- Tightening specification: 9 Nm (bolts with a M6 thread) and 25 Nm (bolts with a M8 thread).
Bolts
- Tightening specification: 9 Nm (bolts with a M6 thread) and 25 Nm (bolts with a M8 thread).
O-Ring Seals
Pass-Through for the Refrigerant Lines in the Luggage Compartment
- Removing and installing. Refer to REFRIGERANT LINE PASS-THROUGH IN LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .
O-Ring Seals
Bolts
- Tightening specification: 9 Nm (bolts with a M6 thread) and 25 Nm (bolts with a M8 thread).
Nut
- Tightening specification 9 Nm.
High Pressure Refrigerant Line
- To the battery cooling module inside the luggage compartment
- Removing and Installing. Refer to REFRIGERANT LINES FOR BATTERY COOLING MODULE IN LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .
Low Pressure Side Refrigerant Line
- To the battery cooling module inside the luggage compartment
- Removing and installing. Refer to REFRIGERANT LINES FOR BATTERY COOLING MODULE IN LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .
Bolt
- Tightening specification: 9 Nm (bolts with a M6 thread) and 25 Nm (bolts with a M8 thread).
O-Ring Seals
Bolt
- Tightening specification: 9 Nm (bolts with a M6 thread) and 25 Nm (bolts with a M8 thread).
Sheet Metal Nut
- Tightening specification: 2.5 Nm
Bolt
- Tightening specification: 9 Nm (bolts with a M6 thread) and 25 Nm (bolts with a M8 thread).
Hybrid Battery Refrigerant Shut-Off Valve 1 -N516-
- Removing and installing. Refer to Hybrid Battery Refrigerant Shut-Off Valve 1 -N516-, REMOVING AND INSTALLING .
  NOTE:
  The Hybrid Battery Refrigerant Shut-Off Valve 1 -V516- is installed in the high pressure side refrigerant line. Refer to -item 1- (See Fig 1), and refer to Hybrid Battery Refrigerant Shut-Off Valve 1 -N516-, REMOVING AND INSTALLING (it does not have a number in this illustration).
