Expansion Valve, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Connection Pipes -C- And -E- Leading To Evaporator And Expansion Valve Connections
GWWA87-10377Courtesy of AUDI OF AMERICA, LLC

Installation is done is reverse order, observe the following:

-- Clean the connection pipes -C- and -E- leading to the evaporator and the expansion valve connections, and check for damage.

NOTE:

The expansion valve is available in different versions (same housing but a different control characteristic). Therefore, to ensure the exact allocation.

Follow the instructions for installing the O-rings. Refer to REFRIGERANT CIRCUIT SEALS .

-- Replace the O-ring seals -B- and -F-. Allocate correct version.

-- Coat the O-ring seals lightly with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS .

-- Make sure the retaining plate -D- fits correctly on the connection pipes -C- and -E- leading to the evaporator.

-- Tighten the bolts -G-.

-- Install the refrigerant line with inner heat exchanger. Refer to REFRIGERANT LINES WITH INNER HEAT EXCHANGER, REMOVING AND INSTALLING .

-- Evacuate the refrigerant circuit and fill it. Refer to USING SERVICE STATION . For additional information, refer to OVERVIEW - REFRIGERANT CIRCUIT, NOT OPENING THE REFRIGERANT CIRCUIT, VEHICLES WITHOUT HIGH VOLTAGE SYSTEM  and OVERVIEW - REFRIGERANT CIRCUIT, OPENING THE REFRIGERANT CIRCUIT, VEHICLES WITHOUT HIGH VOLTAGE SYSTEM  (Refrigerant R134a, Servicing; Refrigerant Circuit, Using Service Station).

On vehicles with a high voltage system (hybrid vehicles)

-- Visually inspect the high voltage components -D- and high voltage cables -E- after completing the work procedures and before installing the plenum chamber cover -B-. Refer to HIGH VOLTAGE SYSTEM GENERAL WARNINGS .

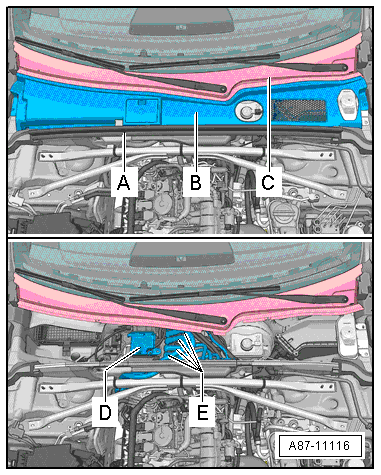

Fig 2: Inspecting High Voltage Components
GWWA87-11116Courtesy of AUDI OF AMERICA, LLC

-- Electrical connections and routing. Refer to the appropriate SYSTEM WIRING DIAGRAM.

-- Energize the power supply to the high voltage system. Refer to HIGH VOLTAGE SYSTEM, RE-ENERGIZING .

All vehicles

-- Install the remaining removed components.

-- Turn on the ignition.

-- Check the DTC memory for the Climatronic Control Module -- display and control head and erase any displayed malfunctions, if necessary using the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.

-- Operate the A/C system after filling the refrigerant circuit. Refer to A/C SYSTEM, STARTING OPERATION AFTER FILLING REFRIGERANT CIRCUIT .

NOTE:

Observe the information regarding operating the A/C system after filling. Refer to A/C SYSTEM, OPERATING AFTER CHARGING , (Refrigerant R134a, Servicing; A/C System, General Information). After charging the A/C system before activating the A/C system.
