A/C Compressor Input Shaft, Removing And Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Removing the Input Shaft

-- Remove the A/C compressor. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .

-- Remove the grommet -A-.

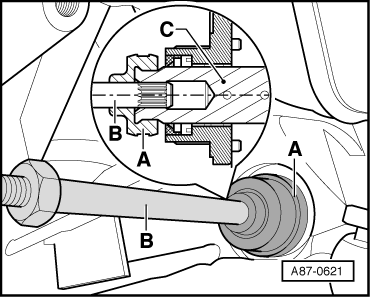

Fig 1: Identifying Boot, Drive Shaft & Drive Pinion Splines

Courtesy of AUDI OF AMERICA, LLC

-- Remove the input shaft -B- from splines of drive pinion -C-

NOTE:

A clamp on the engine toothed drive gear flange -C- prevents the boot -A- from slipping.

Installing the input shaft

Install in reverse order of removal. Note the following:

-- Check the input shaft -B-, splines must show no traces of wear and must be seated free of play in splines of drive wheel -C-.

-- Prior to installation, coat the input shaft splines -B-, for example, with Lubricating Grease G 000 100.

-- Insert the input shaft -B- before installing A/C compressor and slide it into drive wheel -C- up to stop.

Fig 2: Identifying Boot, Drive Shaft & Drive Pinion Splines

Courtesy of AUDI OF AMERICA, LLC

-- After installing A/C compressor, check the position of the grommet -A-.

NOTE:

A clamp on the power take-off flange keeps the grommet -A- from sliding off, refer to Fig 2 .
