Overview - Instrument Panel

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

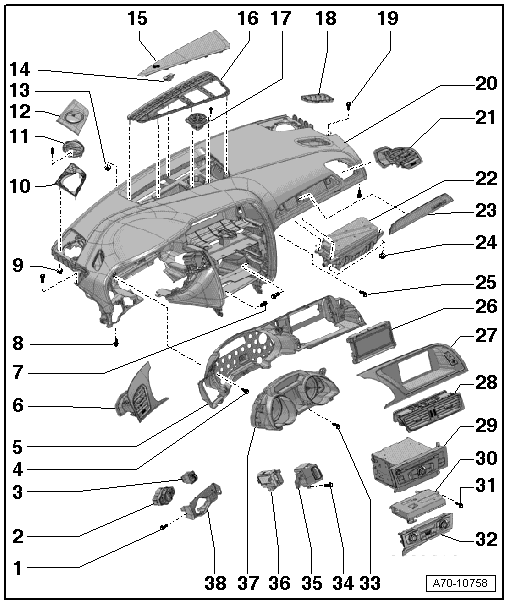

Fig 1: Overview Of Instrument Panel Components
GWWA70-10758Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 1.5 Nm
    • Quantity: 3
  2. Light Switch -E1-
  3. Headlamp Range Control Adjuster -E102-
  4. Bolt
    • 3 Nm
    • Quantity: 6
  5. Frame
  6. Left Side Instrument Panel Vent
  7. Bolt
    • 3 Nm
    • Quantity: 2
  8. Bolt
    • 3 Nm
    • Quantity: 2
  9. Nut
    • 0.5 Nm
    • Quantity: 6
      NOTE:

      Tighten the bolts carefully to prevent the mounting pins on the speaker trim from shearing off.

  10. Mount
  11. Mid-range Speaker
  12. Side Speaker Trim
  13. Nut
    • 0.5 Nm
    • Quantity: 6
      NOTE:

      Tighten the nuts carefully to prevent the screws on the defroster vent from shearing off.

  14. Sunlight Photo Sensor -G107-
  15. Center Speaker Trim
  16. Upper Center Defroster Vent
  17. Mid-range Speaker
  18. Upper Side Defroster Vent
  19. Bolt
    • 3 Nm
    • Quantity: 2
  20. Instrument Panel
    WARNING:
    • Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
    • Follow the allocation of the airbag to the instrument panel.
  21. Right Side Instrument Panel Vent
  22. Front Passenger Airbag
    WARNING:
    • Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
    • Follow the allocation of the airbag to the instrument panel.
  23. Trim Molding
  24. Nut
  25. Bolt
    • 3 Nm
  26. MMI Screen
  27. Cover
  28. Center Instrument Panel Vent
  29. Radio/Navigation System
  30. Front Information Display Control Head Module -J523-
  31. Bolt
    • 2 Nm
  32. Climatronic Control Module -J255-
  33. Bolt
    • 3 Nm
  34. Bolt
    • 3 Nm
  35. Trim
  36. Access/Start Authorization Switch -E415-
  37. Instrument Cluster
  38. Light Switch Trim

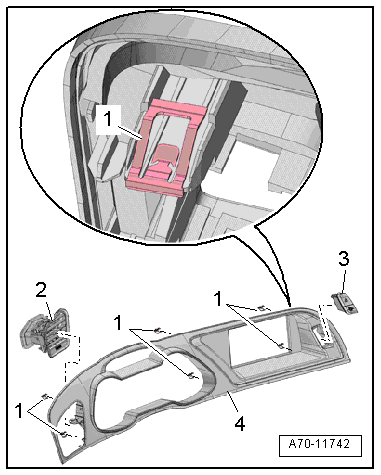

Fig 2: MMI Screen Cover - From MY 12
GWWA70-11742Courtesy of AUDI OF AMERICA, LLC
  1. Clips - quantity: 6
  2. Left side instrument panel vent - removing and installing, refer to REMOVING ->From MY 2012:
  3. Emergency Flasher Button -E229- with Front Passenger Airbag -Disabled- Indicator Lamp -K145-, Removing and Installing. Refer to Emergency Flasher Button -E229-, REMOVING AND INSTALLING .
  4. MMI Screen Cover, Removing and Installing, refer to MMI SCREEN COVER, REMOVING AND INSTALLING, FROM MY 2012
