Plugs, Installing In Center Vent Air Duct

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This air guide has an opening. At certain setting, whistling noises may be present at this opening. Therefore, this opening is sealed with a plug at the factory (running change from 02/2009).

-- Cover The Upper Center Console To Prevent Damage.

-- Remove The Front Information Display Control Head -J685-. Refer To INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .

-- Reach into the opening in the instrument panel and install the plug -B- into the opening in the air guide -A-.

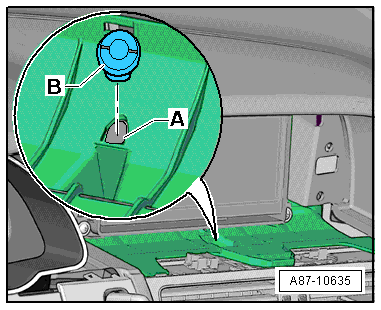

Fig 1: Make Sure Plug Fits Tightly Inside Opening

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the plug -B- fits tightly inside the opening -A-.

NOTE:

The illustration shows the opening -A- on an Audi A4. On the Audi Q5 is covered by a brace and is difficult to reach.

The plug -B- is a replacement part (replacement part number: 8K9 805 673 C). Refer to the Parts Information..
