Electronic Damping Control Module -J250-, With Dynamic Ride Control: Removing

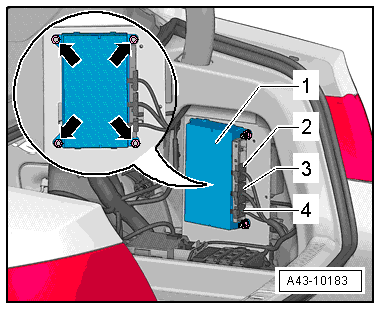

Fig 1: Identifying Control Module -1-, Nuts -Arrows- And Connectors -2 Through 4-

Courtesy of AUDI OF AMERICA, LLC

-- Switch off all electrical consumers.

-- Remove the ignition key.

-- Remove the cover from the right luggage compartment storage compartment.

-- Remove the nut -arrow-.

-- Disconnect the connectors -2 through 4- from the control module.

-- Remove the control module -1-.
