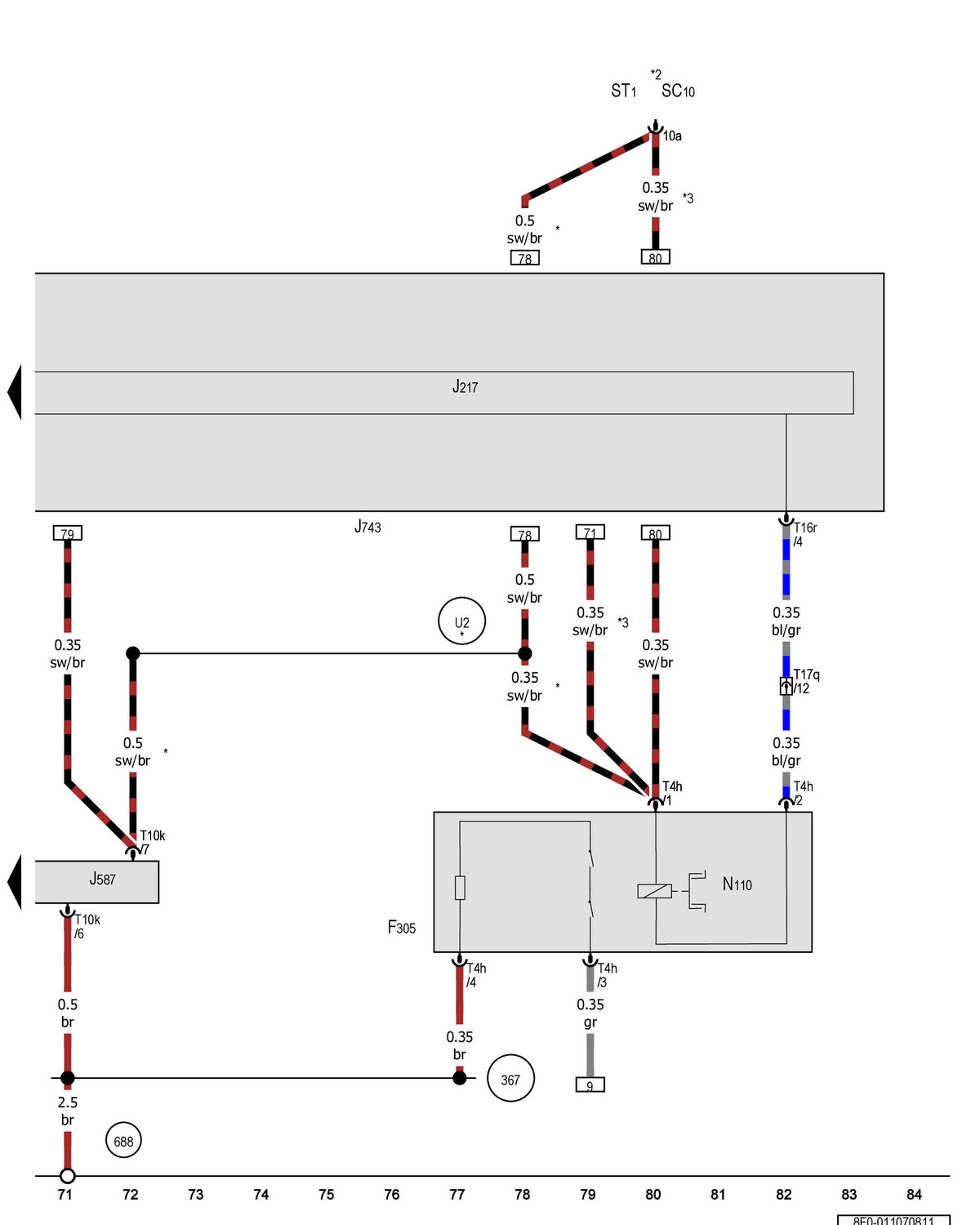

Transmission Park Selector Switch, Transmission Control Module, Selector Lever Sensor System Control Module, Shift Lock Solenoid: Notes

GWW8F0-011070811

Courtesy of AUDI OF AMERICA, LLC
