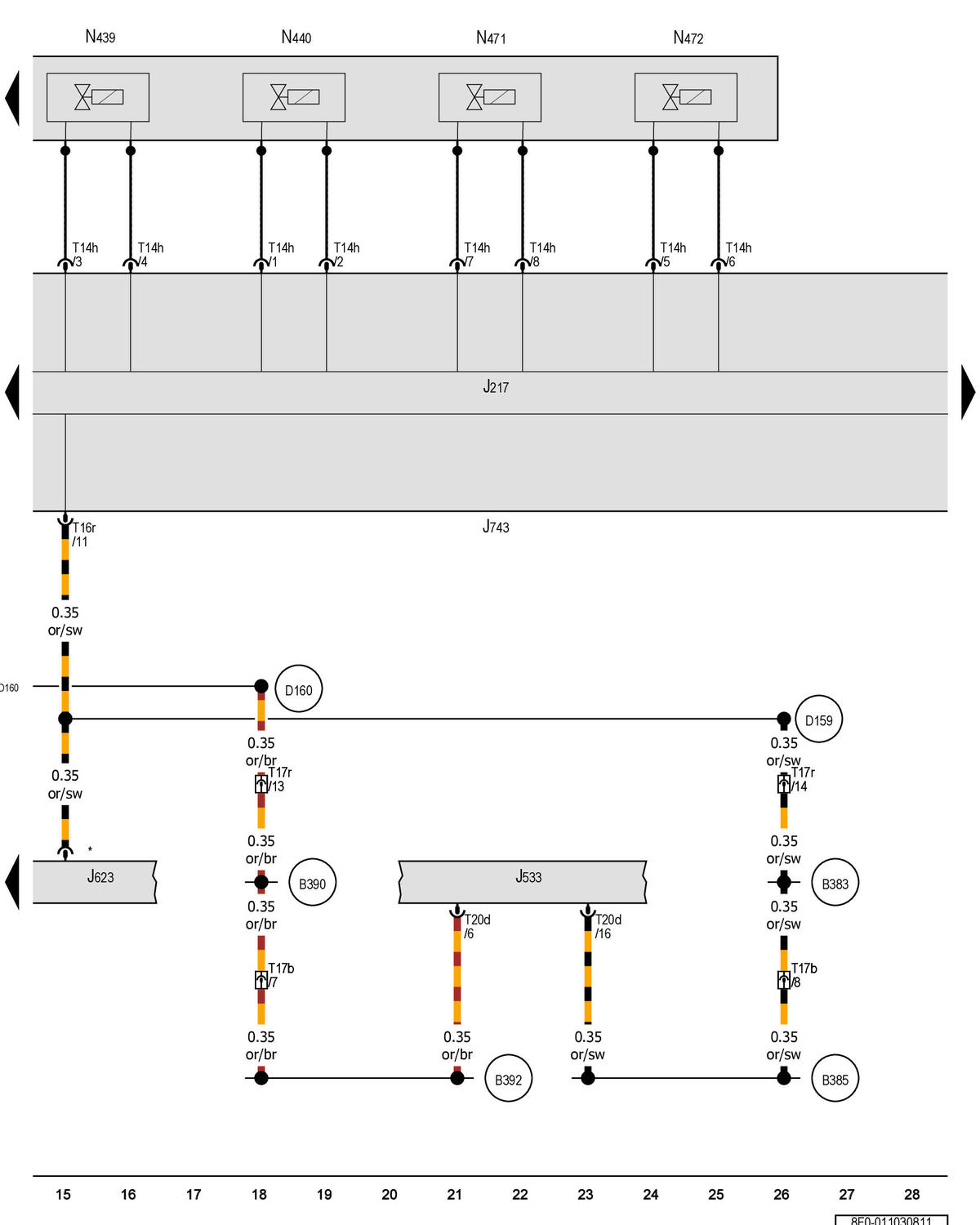

Transmission Control Module, Data Bus On Board Diagnostic Interface, Sub-Transmission 2 Valve 3, Sub-Transmission 2 Valve 4, Cooling Oil Valve, Main Pressure Valve: Notes

GWW8F0-011030811Courtesy of AUDI OF AMERICA, LLC
