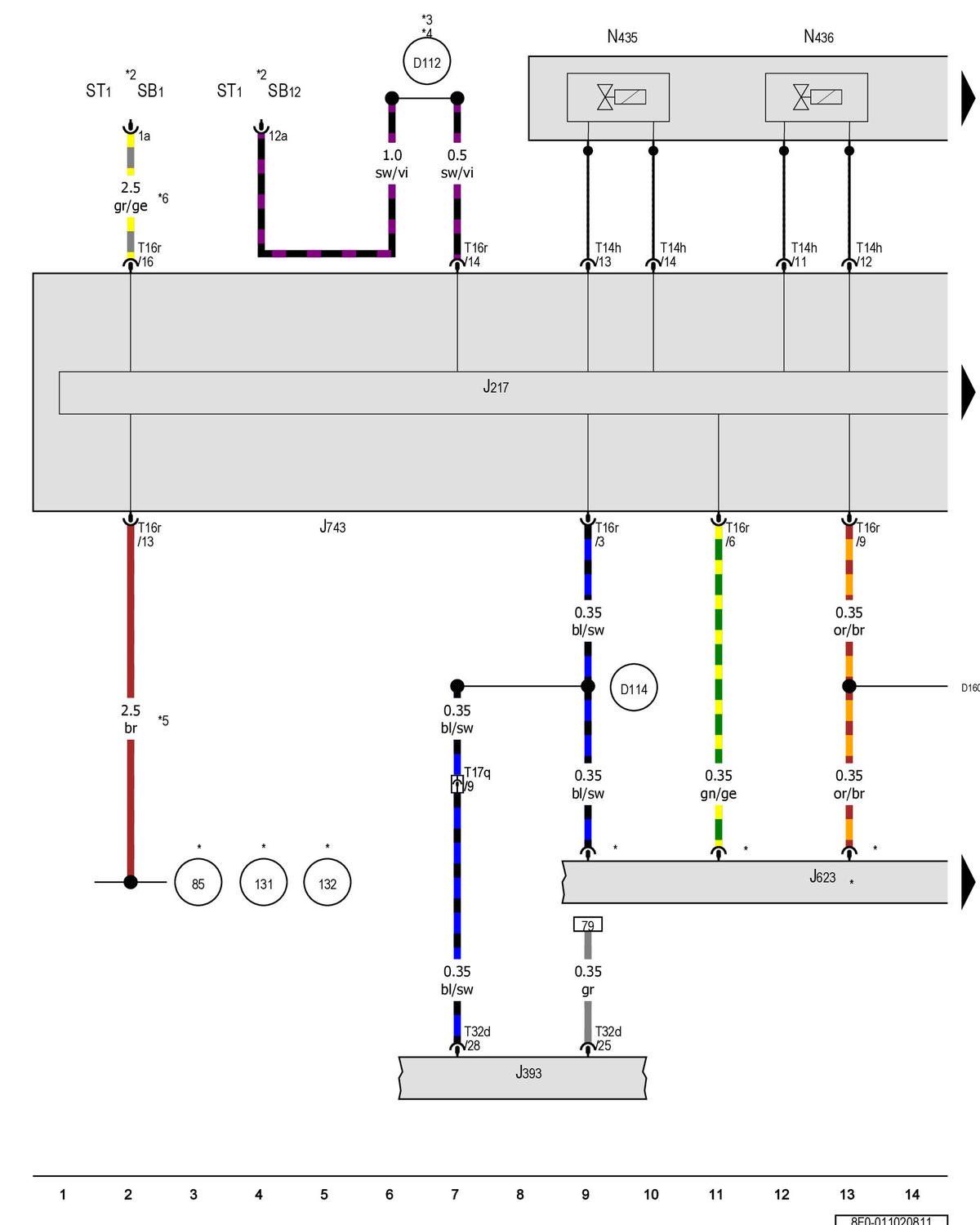

Transmission Control Module, Comfort System Central Control Module, Sub-Transmission 1 Valve 3, Sub-Transmission 1 Valve 4: Notes

GWW8F0-011020811

Courtesy of AUDI OF AMERICA, LLC
