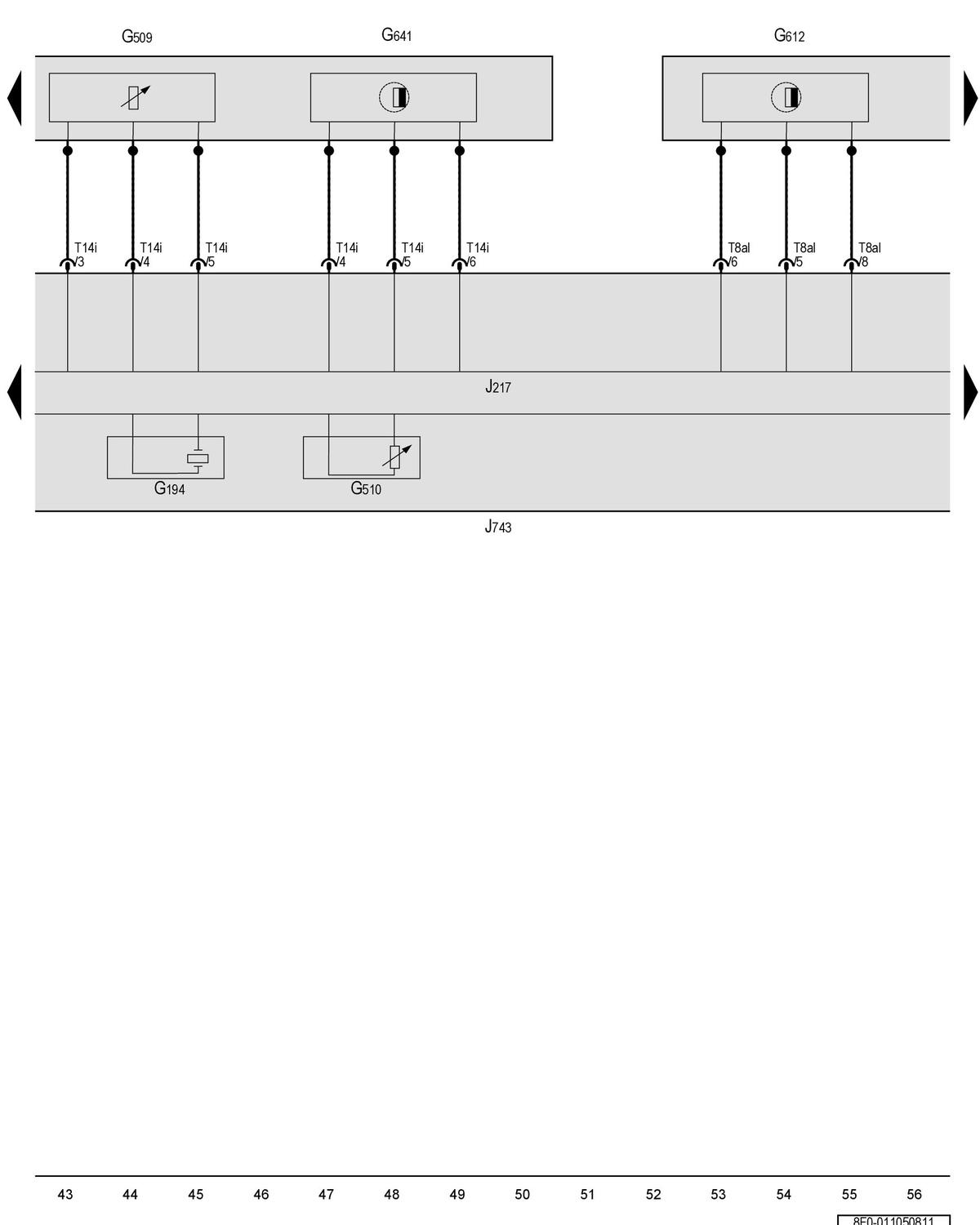

Automatic Transmission Hydraulic Pressure Sensor 2, Temperature Sensor In Control Module, Transmission Input Speed Sensor 2, Transmission Control Module: Notes

GWW8F0-011050811Courtesy of AUDI OF AMERICA, LLC
