Overview - Rear Axle

WARNING: This page is about a different variant/trim than selected.

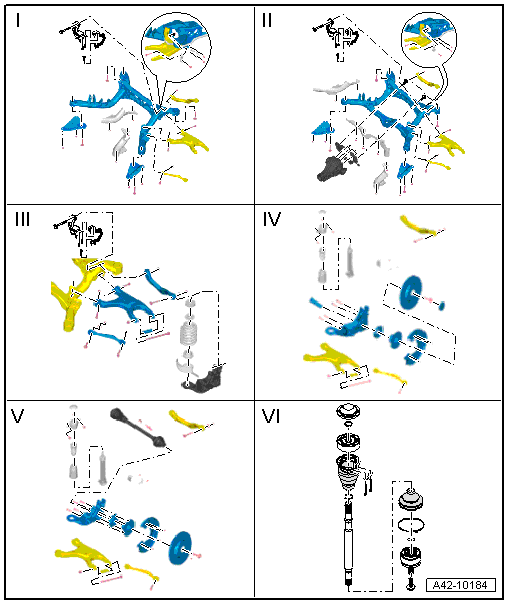

Fig 1: Exploded View Of Rear Suspension
GWWA42-10184Courtesy of AUDI OF AMERICA, LLC
  1. - Refer To SUBFRAME .
  2. - Refer To SUBFRAME .
  3. - Refer To CONTROL ARM, TIE ROD .
  4. - Refer To WHEEL BEARING AND TRAILING ARM .
  5. - Refer To WHEEL BEARING AND TRAILING ARM .
  6. - Refer To DRIVE AXLE .
