Wheel Bearing Housing, Removing And Installing: Removing
-- Loosen the connection between the drive axle and wheel hub. Refer To DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
-- Remove the control arm. Refer To CONTROL ARM, REMOVING AND INSTALLING .

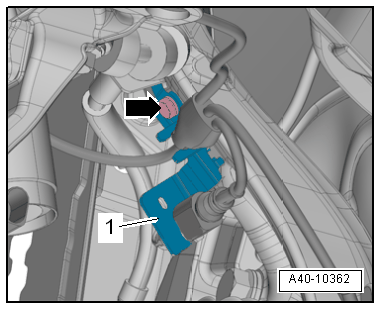

-- Remove the bolt -arrow- and the bracket -1- for the brake line and electrical wires from the wheel bearing housing.
-- Remove The Front ABS Wheel Speed Sensor --. Refer To RIGHT FRONT ABS WHEEL SPEED SENSOR -G45- AND LEFT FRONT ABS WHEEL SPEED SENSOR -G47- .
-- Remove brake caliper and secure to body so weight of caliper does not stress or damage brake hose or brake line.
-- Remove the brake rotor.
-- Remove the screws -arrows- and remove the brake shield -1-.
-- Remove the nut from the guide link joint pins just enough so it is flush with the joint pin thread. Counterhold when loosening.
To Protect Thread, Screw Nut On Pin A Few Turns.
-- Press the guide link joint pin off the conical seat using the :T40010A .
-- Disconnect the threaded connection -1-.
-- Remove booth joint pins in the upper control arm -2- from the wheel bearing housing.
The slits in the wheel bearing housing must not be widened using a chisel or similar tool!
-- Loosen the wheel bearing housing from the drive axle splines and remove it.
The Drive Axle Must Not Hang Down, Otherwise The Inner Joint Will Be Damaged By Over-Flexing.
Secure Drive Axle To Body Using Wire.
