Diagonal Brace, SPORTBACK: Removing

Fig 1: Identifying Stone Deflectors

Courtesy of AUDI OF AMERICA, LLC

-- Place the vehicle on a hoist.

-- Remove the cover -1- and -2-. Refer To the appropriate Service Information .

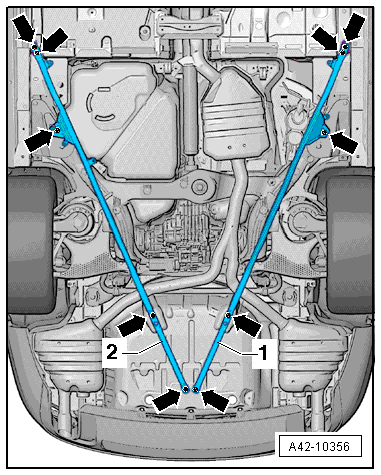

-- Remove the bolts -arrows- and then remove the diagonal brace -1- and -2-.

Fig 2: Identifying Diagonal Braces & Bolts

Courtesy of AUDI OF AMERICA, LLC
