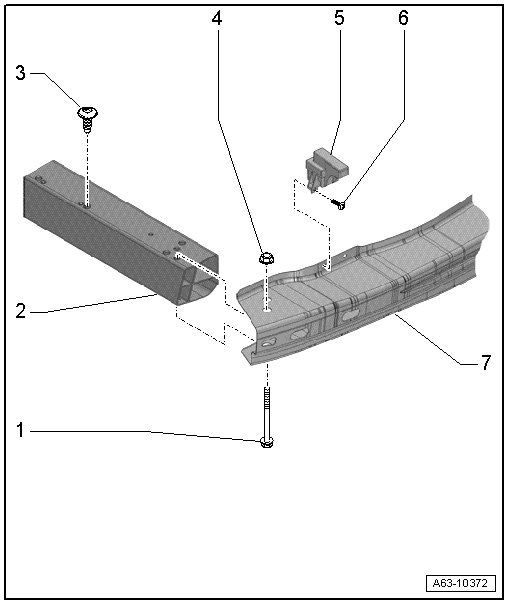

Overview - Impact Absorber, AUDI RS5
WARNING: This page is about a different variant/trim than selected.
- Bolt
- Quantity: 4
- Impact Member Mount
- Removing and installing. Refer to IMPACT ABSORBER MOUNT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm
- Quantity: 4
- Nut
- 17 Nm
- Quantity: 4
- Radio Frequency Controlled Clock Receiver -J489-
- Removing and Installing. Refer to Clock .
- Bolt
- Quantity: 2
- Tightening specification. Refer to Instruments .
- Impact Member
- Removing and installing. Refer to IMPACT ABSORBER, REMOVING AND INSTALLING .
