Impact Absorber Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the impact member. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
-- Remove the tie downs. Refer to Luggage Compartment Trim Panels .
-- Loosen the left and right luggage compartment side trim panel. Refer to Luggage Compartment Trim Panels .

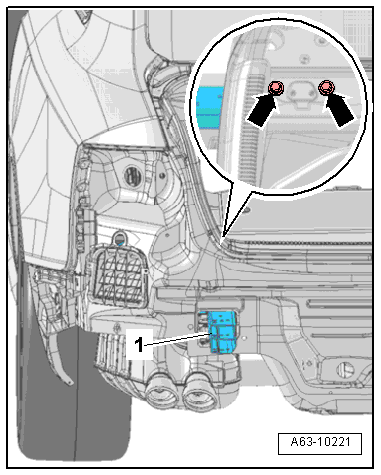

-- Remove the bolts -arrows- and the impact bar mount -1- .
