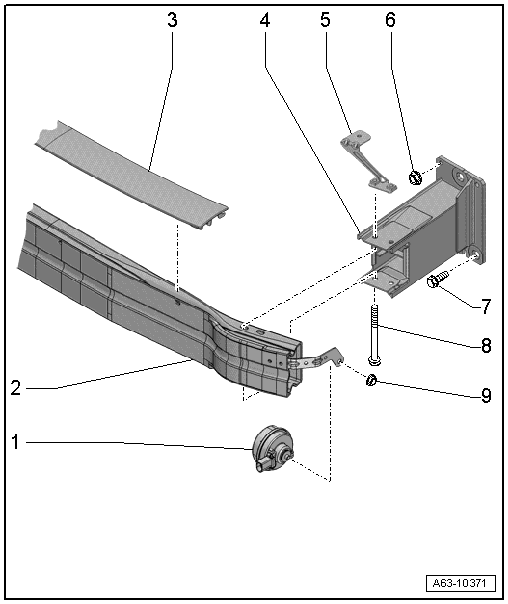

Overview - Impact Member, AUDI RS5 Through My 2011
WARNING: This page is about a different variant/trim than selected.
- Horn
- Removing and installing. Refer to Horn .
- Impact Member
- Removing and installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2011 .
- Cover
- For impact member
- Impact Member Mount
- Removing and Installing. Refer to IMPACT MEMBER MOUNT, REMOVING AND INSTALLING FOR VEHICLES THROUGH MY 2011 => Left Mount , Installing => Right Mount
- Spacer
- For the bumper cover
- Nut
- 4 Nm
- Bolt
- 55 Nm
- Quantity: 3
- Bolt
- 20 Nm
- Quantity: 2
- Nut
- Tightening specification. Refer to Horn .
