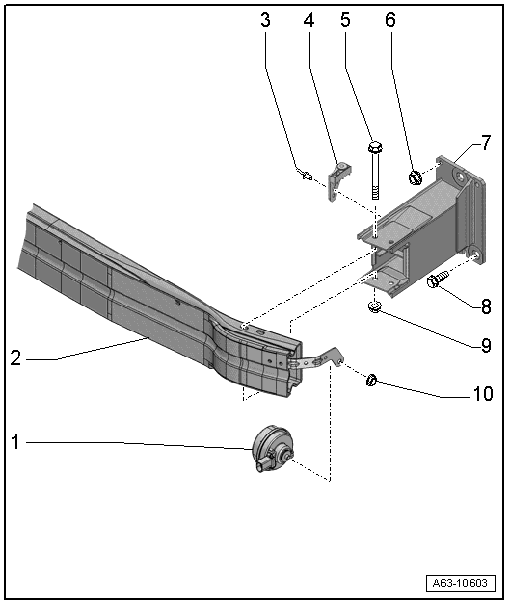

Overview - Impact Absorber, Vehicles From My 2012
WARNING: This page is about a different variant/trim than selected.
- Horn
- Removing and installing. Refer to Horn .
- Impact Member
- Removing and installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, VEHICLES FROM MY 2012 .
- Rivet
- Quantity: 2
- Counterholder
- For mount with adjusting mechanism
- Removing and installing. Refer to BUMPER COVER MOUNT COUNTERHOLDER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- Nut
- 4 Nm
- Impact Member Mount
- Removing and installing. Refer to IMPACT MEMBER MOUNT, REMOVING AND INSTALLING, VEHICLES FROM MY 2012 .
- Bolt
- 55 Nm
- Quantity: 3
- Nut
- 20 Nm
- Quantity: 2
- Nut
- Tightening specification. Refer to Horn .
