Overview - Bumper Cover AUDI S5

WARNING: This page is about a different variant/trim than selected.

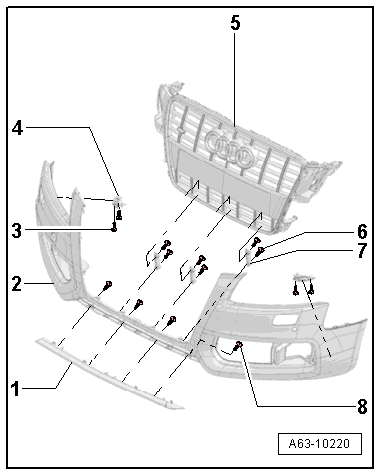

Fig 1: Identifying Audi S5 Bumper Cover
GWWA63-10220
  1. Trim molding, removing and installing. Refer to Installing => Trim Strip .
  2. Bumper Cover
  3. Screws - 1.5 Nm
  4. Front noise insulation bracket
  5. Radiator Grille
  6. Screws - 1.5 Nm
  7. Reinforcement Brace
  8. Screw - 1.5 Nm
