Bumper Cover, Removing And Installing, AUDI RS5: Removing

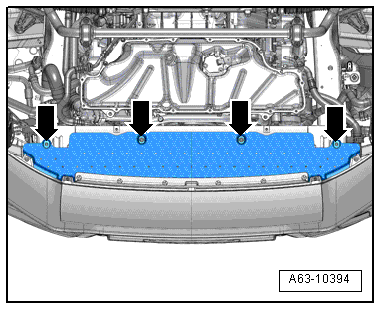

Fig 1: View Of Front Noise Insulation And Fasteners

-- Remove the front noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING, AUDI RS5 .

-- Remove the bolts -arrows- .

-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING, AUDI RS5 .

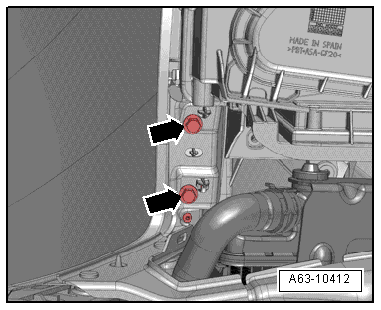

Fig 2: Lock Carrier Bolts

-- Remove the bolts -arrows- .

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

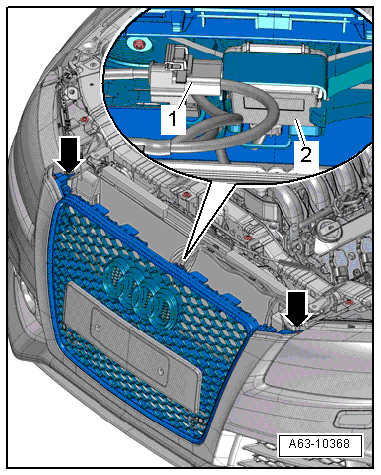

Fig 3: Identifying Front Parking Aid Sensor Connector -1-

-- Disconnect the connector -1- for the front parking aid sensor.

-- In equipped, remove the Garage Door Opener Control Module - J530- -2- . Refer to Contact Release ToolsConnector Housings, Releasing and Disassembling .

-- Remove the bolts -arrows- .

-- Disengage the side walls on the front side panel and remove the bumper cover forward.
