Air Intake Grille, Removing And Installing, AUDI RS5: Removing

WARNING: This page is about a different variant/trim than selected.

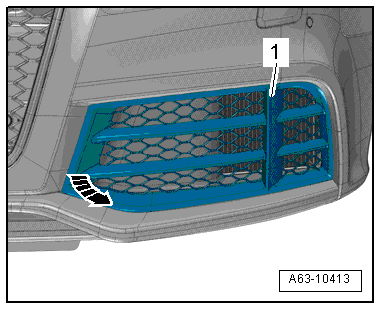

Fig 1: Locating Intake Grille

-- Pull air intake grille -1- off of the bumper cover -arrow- and remove it.

NOTE:

If the air intake grille cannot be removed in the described manner, the front bumper cover must be removed. Refer to BUMPER COVER, REMOVING AND INSTALLING, AUDI RS5 .
