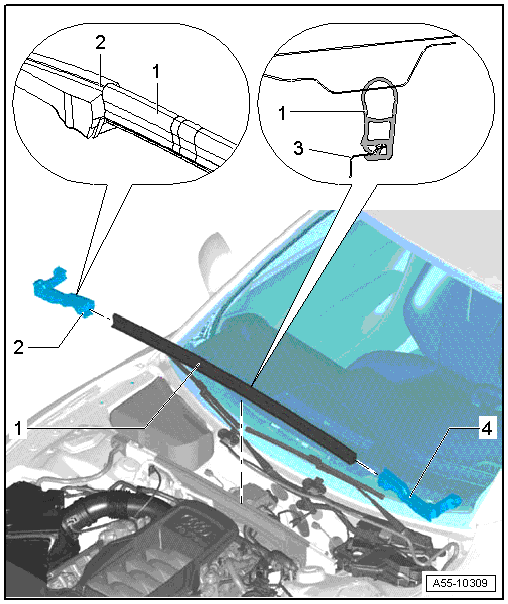

Overview - Hood Seals
WARNING: This page is about a different variant/trim than selected.
- Gasket for Plenum Chamber
- To remove, pull back from the body flange at the sides.
- When installing, slide it into the sealing profile with pre-tension beginning at the sides.
- Press seal onto opposite side in stages.
- Slide seal into sealing profile on opposite side.
- Compress the excess length along the plenum chamber bulkhead.
- Right Sealing Profile
- To remove, unclip from the body and remove it sideways under the fender flange.
- When installing, the clips on the foam piece must engage in the body.
- Plenum Chamber Bulkhead
- Slide the plenum chamber seal on at the sides.
- Left Sealing Profile
- To remove, unclip from the body and remove it sideways under the fender flange.
- When installing, the clips on the foam piece must engage in the body.
