Insulation, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

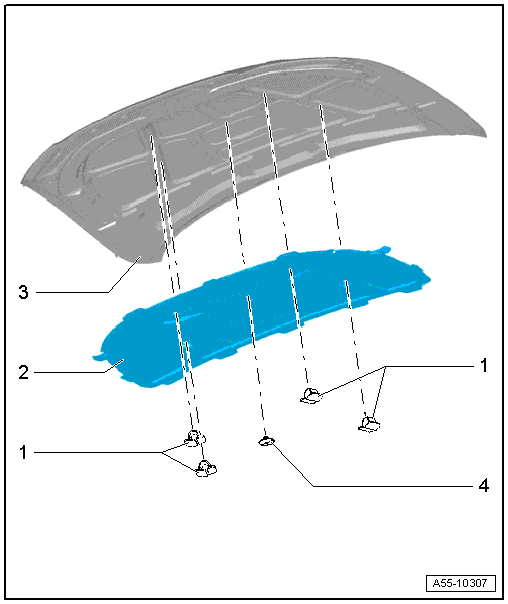

Fig 1: Hold Panel
GWWA55-10307Courtesy of AUDI OF AMERICA, LLC
  1. Clip
  2. Hold Panel
    • Installation:

      -- Slide the lining over the tabs on the rear edge into the holes provided on the inner panel.

      -- Clip the tabs on the front edge and the sides into place.

      -- The clips must engage audibly when pressing in.

      -- Press the clip in.

  3. Door
  4. Clip
