Hood Release Lever, Removing

WARNING: This page is about a different variant/trim than selected.

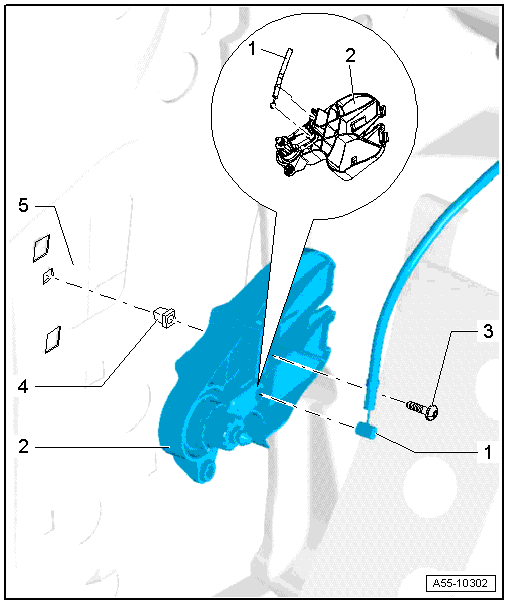

Fig 1: Identifying Hood Release Lever
GWWA55-10302Courtesy of AUDI OF AMERICA, LLC
  1. Release Cable
    • Clip the cable bracket into the mounting bracket as shown in the magnified section of the illustration.
  2. Hood Release Lever Bracket
    • The hood release lever cover is removed.
    • The trim for the >>lower A-pillar is removed<<.
    • Remove the screws -3- and disengage the cable -1-.
  3. Bolts
    • 2 Nm
  4. Clip
  5. A-Pillar
