Overview - Fuel Filler Door Unit, AUDI RS5

WARNING: This page is about a different variant/trim than selected.

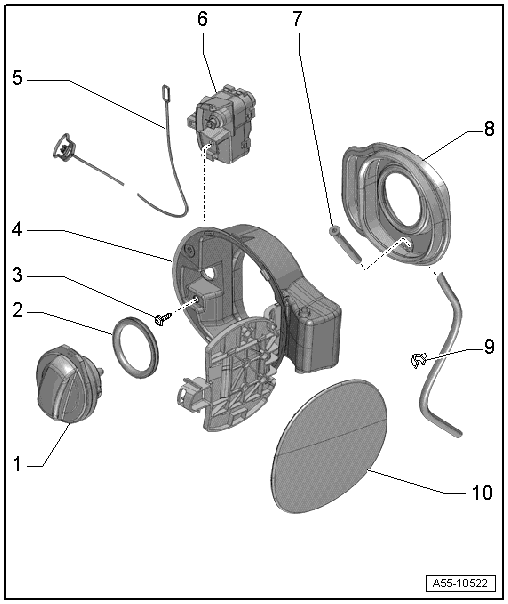

Fig 1: Exploded View Of Fuel Filler Door, Fuel Filler Insert And Emergency Release

Courtesy of AUDI OF AMERICA, LLC

Cap
- With strap
Seal
Bolt
- 1.7 Nm
Fuel Filler Door Insert
- Removing and installing. Refer to FUEL FILLER DOOR, REMOVING AND INSTALLING, AUDI RS5 .
Emergency Release Cable
- For opening the fuel filler door
- Removing and installing. Refer to FUEL FILLER DOOR EMERGENCY RELEASE, REMOVING AND INSTALLING, AUDI RS5 .
Fuel Filler Door Unlock Motor -V155-
- Removing and installing. Refer to FUEL FILLER DOOR UNLOCK MOTOR -V155-, REMOVING AND INSTALLING .
Drain Hose
- From the fuel filler door insert
- Removing and installing. Refer to FUEL FILLER DOOR CUP DRAIN HOSE, REMOVING AND INSTALLING, AUDI RS5 .
Fuel Filler Door Cup
- For the fuel tank filler tube
- Removing and installing. Refer to FUEL FILLER DOOR CUP, REMOVING AND INSTALLING, AUDI RS5 .
Bracket
- For the drain hose
Tank Flap Cup Trim
- Removing and installing. Refer to FUEL FILLER DOOR COVER, REMOVING AND INSTALLING, AUDI RS5 .
