Fuel Filler Door, Removing And Installing, Except AUDI RS5

Remove Fuel Filler Door Insert

-- Release the tank flap insert at the markings -arrows-.

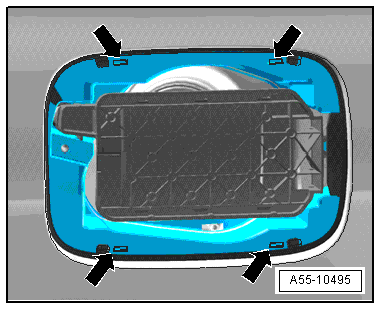

Fig 1: Locating Markings -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- To do this, insert a small screwdriver diagonally from underneath through the marking in the tank flap insert over the latches.

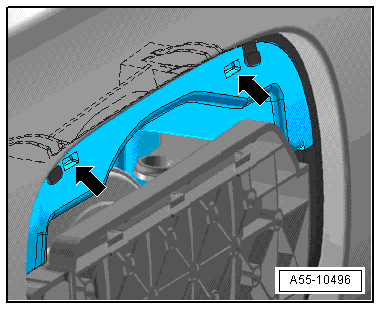

Fig 2: Locating Latches -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Gently lift the screwdriver and release the latches.

-- Pull the tank flap insert in steps out of its cut-out.
