Fuel Filler Door Emergency Release, Removing And Installing, Except AUDI RS5

WARNING: This page is about a different variant/trim than selected.

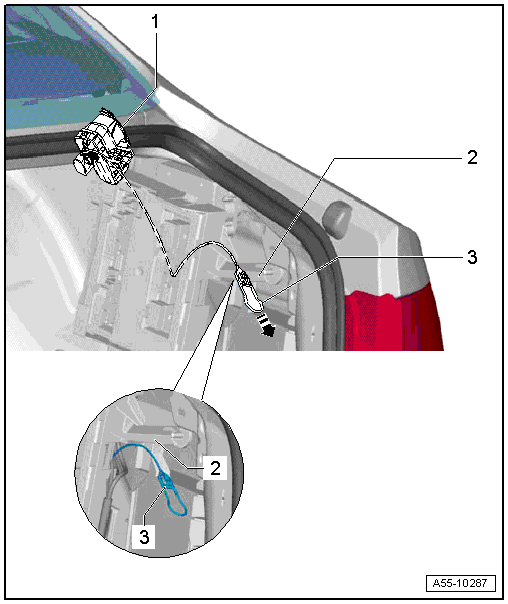

Fig 1: Fuel Filler Door Emergency Release
GWWA55-10287Courtesy of AUDI OF AMERICA, LLC
  1. Fuel Filler Door Unlock Motor -V155-
  2. Emergency Release Cable
    • Insert the Fuel Filler Door Unlock -V155- ash sown with the cable over the tank opening.
    • Pull the cable back into the vehicle interior and connect it with the tab on the flange on the Comfort System Central Control Module -J393-.
  3. Side Panel
