A - Check Fuel Delivery Rate

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Cover Bolts For Locking Flange

Courtesy of AUDI OF AMERICA, LLC

-- Follow all test requirements. Refer to TEST CONDITIONS .

-- Remove the rear bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the locking flange cover -arrows-.

-- Disconnect the connector -1- on the sealing flange.

Fig 2: Disconnect Connectors

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Push the circlip -1- upward -arrow A- and squeeze the release -arrow B-.

Fig 3: Pulling Lock -1- Upward -Arrow A- & Press -Arrow B-

Courtesy of AUDI OF AMERICA, LLC

-- Connect the Injection Rate Comparison Meter Kit - Remote Cable:VAG1348/3A using the remote cable :VAG1348/3-3 and cable from the Connector Test Set:VAG1594D to the terminal -1-.

Fig 4: Checking Fuel Pressure

Courtesy of AUDI OF AMERICA, LLC

-- Tape the second Injection Rate Kit - Remote Cable :VAG1348/3-3 with insulating tape -arrow-.

-- Connect the connector terminal -5- to the body ground with an adapter cable from the Connector Test Set:VAG1594D .

-- Place the switch for the Injection Rate Comparison Meter Kit - Remote Cable:VAG1348/3A toward front in engine compartment.

-- Remove the center plenum chamber cover. Refer to BULKHEAD .

Fig 5: Identifying Cover, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Releases the retainer -arrow A- and open the cover -arrow B-.

Fig 6: Opening Terminal Box Cover

Courtesy of AUDI OF AMERICA, LLC

-- Connect the alligator clip to the Battery Jump Start Terminal -U6- -A- in the Terminal 30 Wire Junction 2 -TV22- in the plenum chamber.

Fig 7: Checking Fuel Pressure

Courtesy of AUDI OF AMERICA, LLC

-- Release and open the fuel filler door.

Fig 8: Identifying Cap -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cap -2- for the fuel filler -1-.

NOTE:

Ignore item -3-.

WARNING:

There is a risk of injury because the fuel is under high pressure.

To reduce pressure in fuel system, lay a clean cloth around the connector and carefully loosen connector.

Vehicles with 4-Cylinder Engines

Fig 9: Identifying Fuel Line

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the fuel line -2-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, SEPARATING .

Vehicles with 6-Cylinder FSI and TFSI Engines

Fig 10: Locating Fuel Line -1-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamp and remove the fuel line -1-.

-- Connect the Pressure Tester Kit - Hose 1:VAS6550/1 and adapter hose -1- to the fuel supply line and secure them with hose clamps -2-.

Fig 11: Connecting Fuel Supply Line To Test Kit Adapter Hose

Courtesy of AUDI OF AMERICA, LLC

S5 with 8-Cylinder Engine

Fig 12: Identifying Engine Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover -arrows-.

-- Disconnect the fuel line -arrow-.

Fig 13: Disconnecting Fuel Line

Courtesy of AUDI OF AMERICA, LLC

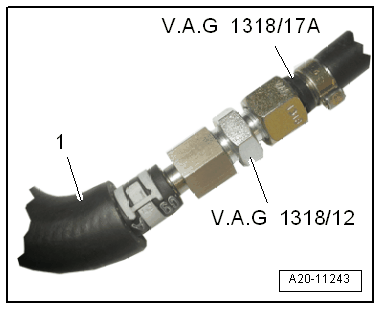

-- Connect the Fuel Injection Gauge Kit - Adapter Set:VAG1318/17A using the Fuel Injection Gauge Ki - Adapter 12:VAG1318/12 to the fuel line -1-.

Fig 14: Connecting Fuel Injection Gauge Kit - Adapter Set VAG1318/17A

Courtesy of AUDI OF AMERICA, LLC

RS5

Fig 15: Engine Cover (4.2L Engine)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover -arrows-.

-- Fold the boot -1- downward and disconnect the hose coupling -2-. Refer to CONNECTOR COUPLINGS, SEPARATING .

Fig 16: Pushing Hose Coupling -2- Downward -Arrow A-, Then Press Release Buttons -Arrow B-

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles

Fig 17: Identifying Diesel Pressure Tester Kit VAS 6550 With Diesel Pressure Tester Kit - Hose 2 VAS 6550/2

Courtesy of AUDI OF AMERICA, LLC

-- Connect the Diesel Pressure Tester Kit:VAS6550 with the Diesel Pressure Tester Kit - Hose 2:VAS6550/2 to the fuel supply line.

-- Connect the Pressure Regulator Valve:VAS6550/4 and hold the hose in a fuel-resistant measuring container.

NOTE:

The illustration shows the measuring setup for a 4-cylinder engine.

-- Turn the Pressure Tester Kit:VAS6550 -1- on by pressing the On/Off button.

Fig 18: Identifying Shut-Off Valves A And B On Pressure Tester Kit

Courtesy of AUDI OF AMERICA, LLC

-- Open the shut-off valves -A and B-.

The levers point in the direction of flow.

CAUTION:

Risk of fuel leak.

The shut-off valve -C- must be closed.
The lever is perpendicular to the direction of flow.

NOTE:

In order to measure the fuel delivery rate, there must be an initial pressure inside the fuel line against which the fuel pump must work during the measuring. Adjust the initial pressure using the Pressure Tester Kit:VAS6550 as follows:

-- Push the remote control switch: the fuel pump starts running.

-- Turn the adjusting screw -1- on the Pressure Regulator Valve:VAS6550/4 to create an initial pressure in the fuel system until the correct initial pressure value is reached.

Fig 19: Identifying Pressure Regulator Valve Adjusting Screw

Courtesy of AUDI OF AMERICA, LLC

Specified value: 4 bar (58 psi) pressure.

-- Release the remote control switch.

-- Do not turn the adjusting screw -1- any farther.

-- Empty measuring container.

-- Press the remote control switch for 15 seconds.

Fig 20: Compare Quantity Of Fuel Delivered With Minimum Delivery Rate In Diagram

Courtesy of AUDI OF AMERICA, LLC

-- Compare quantity of fuel delivered with minimum delivery rate in diagram (cm³ /15 s).

NOTE:

Voltage at fuel pump with engine stopped and pump running is approximate. 2 volts less than battery voltage.

If the Minimum Delivery Rate Is Attained

The fuel delivery unit with the fuel filter, fuel pressure regulator and fuel supply line are OK.

If Minimum Delivery Quantity Is Not Obtained, the Following Malfunctions May Be Present

Fuel delivery unit faulty.
The fuel filter is clogged.
The fuel pressure regulator is faulty.
Fuel supply line is pinched.

NOTE:

To locate the fault in more detail, perform the "pressure test in the fuel supply line", described as follows.
