Supporting Ring, Examining

WARNING: This page is about a different variant/trim than selected.

As with the tire, the supporting ring is generally not replaced after driving with flat tire.

Replace the support ring if the following damages have occurred:

Courtesy of AUDI OF AMERICA, LLC

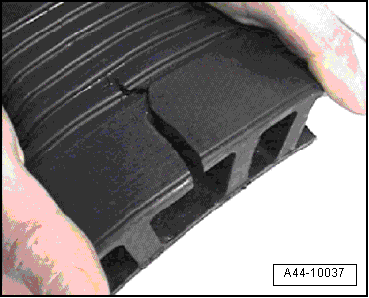

Blowouts or missing parts

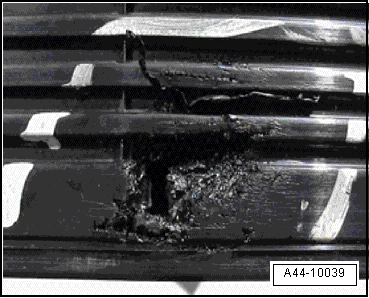

Cracks in partitions

Courtesy of AUDI OF AMERICA, LLC

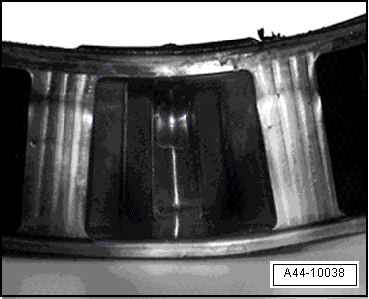

Stitch damage and holes

Courtesy of AUDI OF AMERICA, LLC

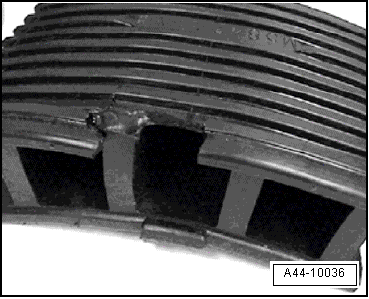

Bubbles and discoloration due to overheating

Courtesy of AUDI OF AMERICA, LLC

Repairs on Tires

NOTE:

Repairs on tires with emergency running characteristics (PAX) must not be performed with adhesive tape.

Tire repair sprays must not be used on tires with emergency running characteristics (PAX) because these products are not compatible with the gel in the tires.
