Dimensions And Designations On Pax Rims

WARNING: This page is about a different variant/trim than selected.

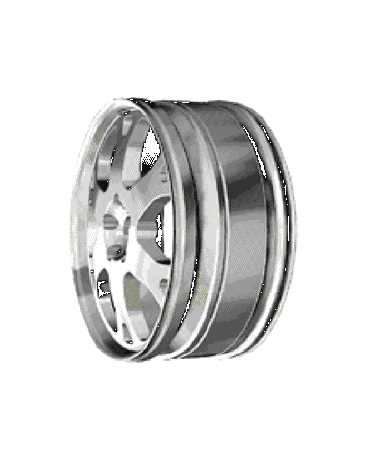

GWWA44-10046Courtesy of AUDI OF AMERICA, LLC

Example: 235 x 500 A - 5 - 41

235 - Designated width in millimeters

x - One-part

500 - Designated diameter of standardized rim seat in millimeters

A - Asymmetrical

5 - Number of bolt holes

41 - Offset in millimeters
