Front Wheel Housing Liner, Removing And Installing, AUDI RS5: Removing

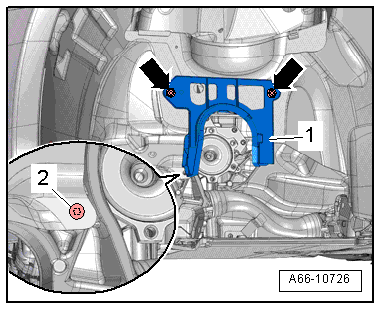

Fig 1: Identifying Driveshaft Cover, Nuts And Wing Nut -2-

-- Remove the nuts -1- .

-- Remove the drive axle cover.

-- Remove the wing nut -2- on the left side of the vehicle and remove the expanding clip on the right side of the vehicle.

-- Remove the bolts -1- .

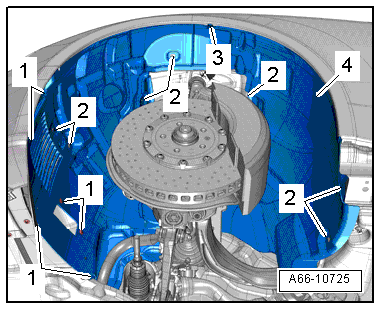

Fig 2: Identifying Bolts And Clips To Wheel Housing Liner, Removal

-- Remove the bolt -3- and remove the mount on the fender.

-- Remove the clip -1- from the wheel housing liner -4- .

-- To remove the clips -3- , unlock the release lever -2- with needle nose pliers in direction of -arrow A- and push it off the pin -1- in direction of -arrow B- .

Fig 3: Identifying Clips -3-, Release Lever -2- And Pin -1-

-- Remove the wheel housing liner.
