Front Inner Wheel Spoiler, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Bolts -Arrows-

-- Remove the bolts -arrows- .

-- Remove the quick release -1- .

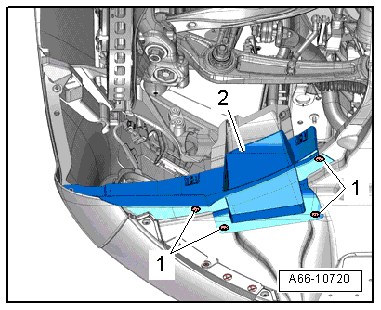

Fig 2: Identifying Quick Release -1- And Front Wheel Spoiler -2-

-- Remove front wheel spoiler -2- .
