Upper Water Drain Hose For Drive Unit, Removing And Installing: Removing

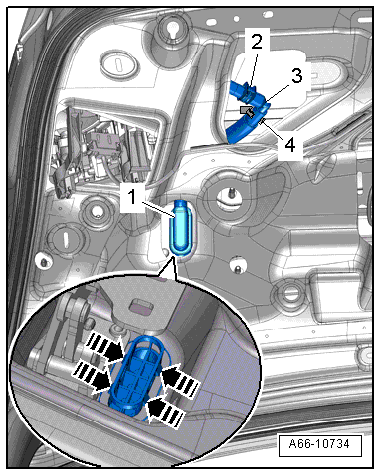

Fig 1: Identifying Mount -1-, Clip -2-, Water Drain Hose -3- And Mount -4-

-- Remove the rear lid trim panel. Refer to Luggage Compartment Trim Panels .

-- Release the clip -2- .

-- Remove the water drain hose -3- from the lower water drain hose and then from the mount -4- .

-- Remove the mount -1- for the upper water drain hose from the rear lid.

• The tabs -arrows- are shown in the illustration.
• The upper water drain hose cannot be removed without being damaged.
