Spoiler Lip, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

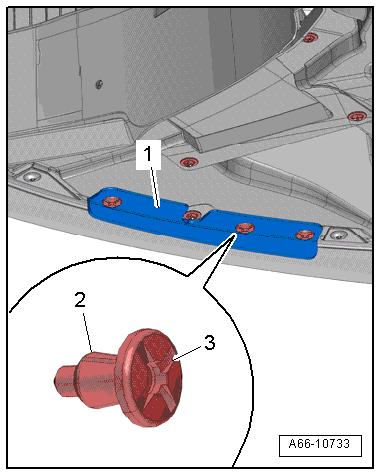

Fig 1: Identifying Spoiler Lip -1-, Expanding Clip -2- And Expanding Pin -3-
GWWA66-10733

-- Remove the expanding pin -3- with the expanding clip -2- .

-- Remove the spoiler lip -1- .
