Mount With Spoiler Drive Unit, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

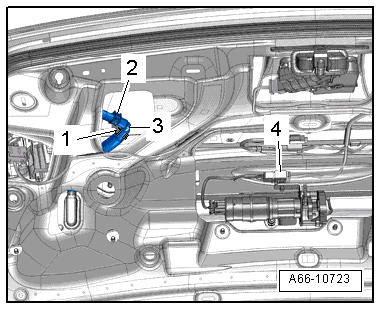

Fig 1: Identifying Mount -1-, Clip -2-, Water Drain Hose -3- And Connector -4-

-- Remove the rear lid trim panel. Refer to Luggage Compartment Trim Panels .

-- Release the clip -2- .

-- Remove the water drain hose -3- from the lower water drain hose and then disengage it from the mount -1- .

-- Disconnect the connector -4- .

-- Remove the nuts -arrows- .

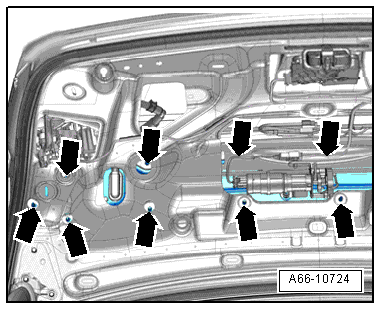

Fig 2: Identifying Nuts -Arrows-

-- Remove the mount with the rear lid drive.
