Lower Rear Lid Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

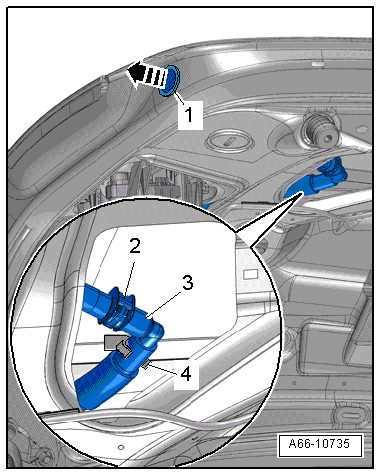

Fig 1: Identifying Lower Water Drain Hose -1-, Clip -2-, Water Drain Hose -3- And Mount -4-

-- Remove the rear lid trim panel. Refer to Luggage Compartment Trim Panels .

-- Release the clip -2- .

-- Remove the water drain hose -3- from the lower water drain hose and then from the mount -4- .

-- Remove the lower water drain hose -1- from the rear lid -arrow- .

-- Remove lower water drain hose.
