License Plate Bracket, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

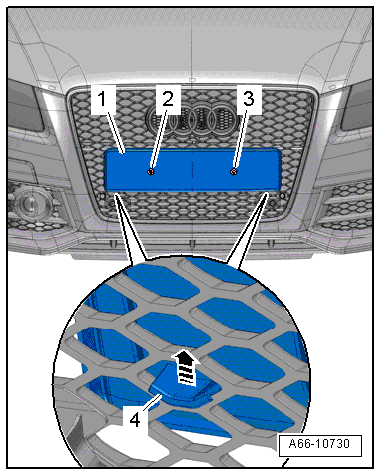

Fig 1: Identifying License Plate Bracket
GWWA66-10730

-- Remove the license plate.

-- Remove the bolts -2 and 3- .

-- Detach license plate bracket -1- upward out of the honeycomb-structured grille in direction of -arrow- while detaching clips -4- .

-- Remove the license plate bracket.
