Rear Lid Dimensions

WARNING: This page is about a different variant/trim than selected.

A5

-- Press the emblems firmly onto the body according to the dimensions.

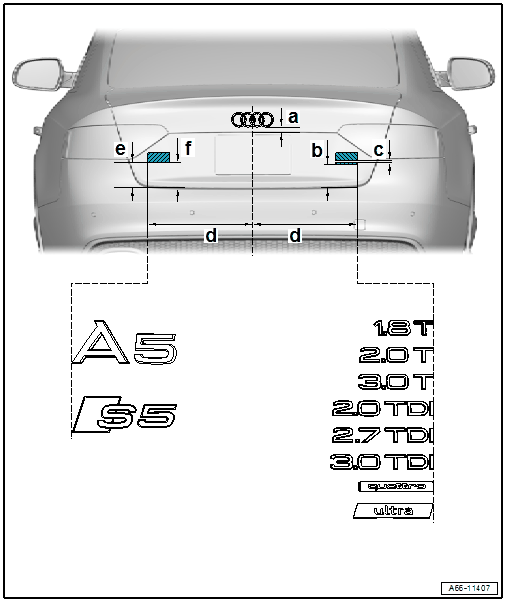

Fig 1: Rear Lid Dimensions A5/S5 Emblem
GWWA66-11407
NOTE:

The dimension -b- is measured to the quattro lower edge or ultra name badge.

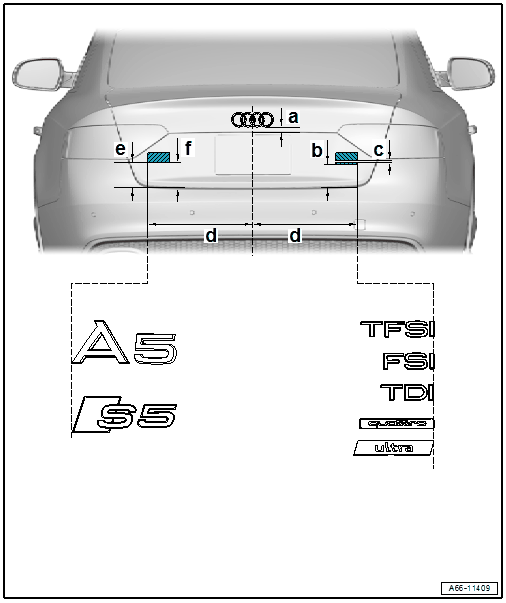

Fig 2: Rear Lid Dimensions A5/S5 Emblem
GWWA66-11409
NOTE:

The dimension -b- is measured to the quattro lower edge or ultra name badge.

Market-Specific

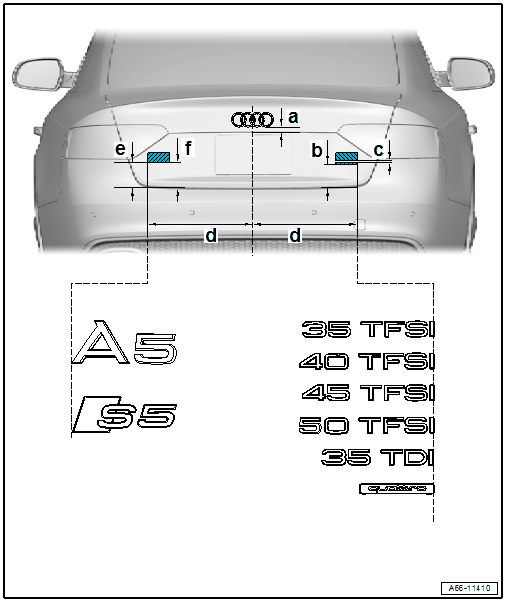

Fig 3: Rear Lid Dimensions A5/S5 Emblem
GWWA66-11410
NOTE:

The dimension -b- is measured to the lower edge of the quattro name badge.

RS5

-- Press the emblems firmly onto the body according to the dimensions.

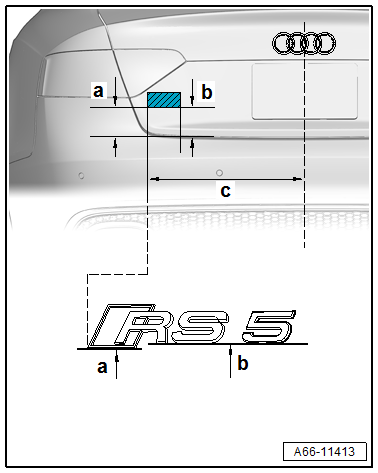

Fig 4: Rear Lid Dimensions RS5 Emblem
GWWA66-11413
