Overview - Heat Shield

Front floor. Refer to OVERVIEW - HEAT SHIELD => Front Floor

Rear floor, except Audi RS5. Refer to OVERVIEW - HEAT SHIELD => Rear Floor, except Audi RS5

Rear floor, Audi RS5. Refer to OVERVIEW - HEAT SHIELD => Rear Floor, Audi RS5

Front Floor

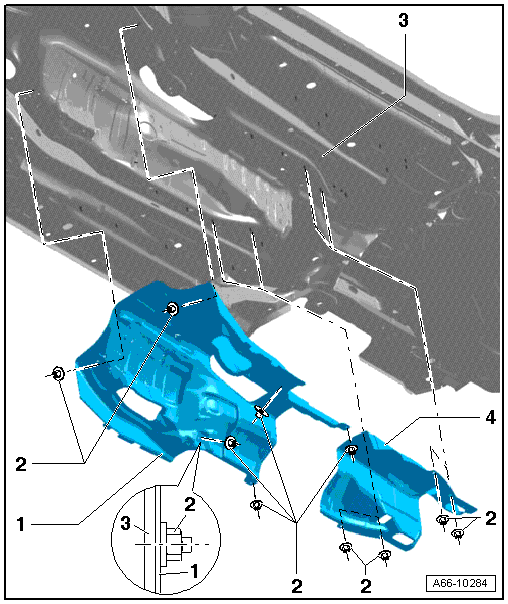

Fig 1: Front Underbody Heat Shield Overview

1. Front Heat Shield
2. Lock Washer
   • When removing, unscrew it, when installing just press the lock washer on.
3. Floor Panel
4. Center Heat Shield

Rear Floor, except Audi RS5

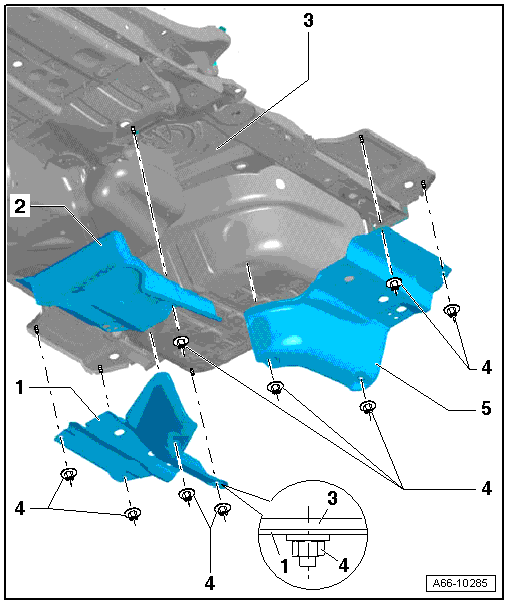

Fig 2: Identifying Rear Floor Heat Shield Overview

1. Right Heat Shield
2. Muffler Heat Shield
3. Vehicle Rear
4. Lock Washer
   • When removing, unscrew it, when installing just press the lock washer on.
5. Left Heat Shield

Rear Floor, Audi RS5

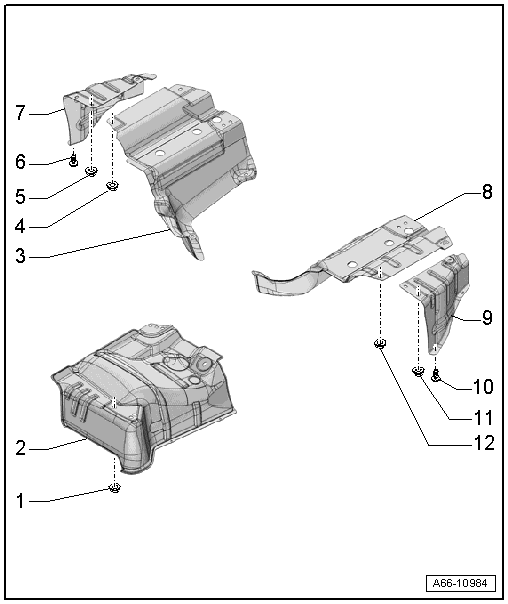

Fig 3: Identifying Heat Shield For Rear Floor Panel, Audi RS5

1. Nut
   • 2.1 Nm
2. Heat Shield
   • For the center of the exhaust system
3. Right Interior Heat Shield
   • For the rear muffler
4. Nut
   • 2.1 Nm
   • Quantity: 4
5. Nut
   • 2.1 Nm
   • Quantity: 3
6. Bolt
   • 2 Nm
   • Quantity: 2
7. Right Exterior Heat Shield
   • For the rear muffler
8. Left Interior Heat Shield
   • For the rear muffler
9. Left Exterior Heat Shield
   • For the rear muffler
10. Bolt
    • 2 Nm
    • Quantity: 2
11. Nut
    • 2.1 Nm
    • Quantity: 3
12. Nut
    • 2.1 Nm
    • Quantity: 4
