Overview - Cover And Cushion, Rear Seat Backrest With Backrest Frame Cover Or Storage Compartment
WARNING: This page is about a different variant/trim than selected.
NOTE:
The Illustration Only Shows The Structure Of The Right 2/3 Section Of The Backrest. The Structure Of The Left 1/3 Section Of The Backrest Is Similar.

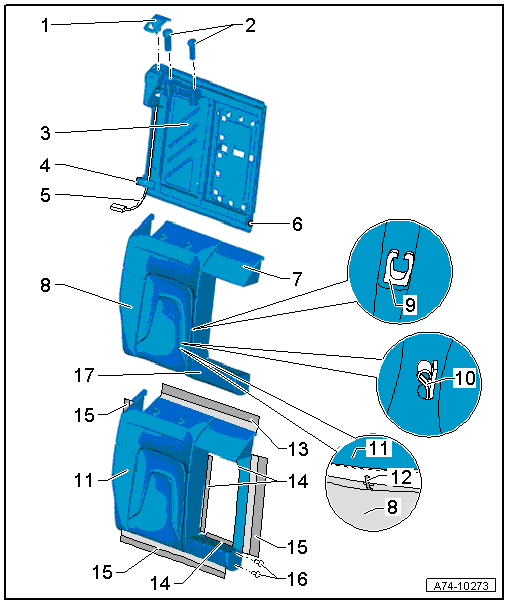

Fig 1: Exploded View Of Cover And Cushion, Rear Seat Backrest With Backrest Frame Cover Or Storage Compartment
- Trim
- For Locking
- Lock Cylinder without Trim, Removing and Installing. Refer To LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, LOCKING MECHANISM WITHOUT LOCK CYLINDER .
- Lock Cylinder with Trim, Removing and Installing. Refer To LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, LOCKING MECHANISM WITH LOCK CYLINDER .
- Headrest Guide
- Removing and installing. Refer To HEADREST GUIDE, REMOVING AND INSTALLING .
- Backrest Shell
- Outer Bracket
- Release Cable
- Lock - Connector Station
- Inner Bracket
- Upper Padding
- Removing and installing. Refer To UPPER AND LOWER CUSHION, REMOVING AND INSTALLING, BACKREST WITH BACKREST BRACKET COVER OR STORAGE COMPARTMENT .
- Cushion
- Removing and installing. Refer To COVER AND PADDING, REMOVING AND INSTALLING, REAR SEAT BACKREST WITH REAR SEAT BACKREST FRAME OR STORAGE COMPARTMENT .
- Separate the cover from the padding. Refer To COVER AND PADDING, SEPARATING, REAR SEAT BACKREST WITH REAR SEAT BACKREST FRAME COVER OR STORAGE COMPARTMENT
- Clip
- Covered In Foam Padding
- Clip
- Covered In Foam Padding
- Only With Fabric Covers
- Cover
- Removing and installing. Refer To COVER AND PADDING, REMOVING AND INSTALLING, REAR SEAT BACKREST WITH REAR SEAT BACKREST FRAME OR STORAGE COMPARTMENT .
- Separate the cover from the padding. Refer To COVER AND PADDING, SEPARATING, REAR SEAT BACKREST WITH REAR SEAT BACKREST FRAME COVER OR STORAGE COMPARTMENT
- Cushion Clip
- Only With Leather Covers
- For Securing The Cover To The Padding
- Always Replace If Removed
- Install In Same Location As Before Removal
- Retaining Channel
- Sewn Into Cover
- For Engaging The Cover In The Backrest Shell
- Molding
- Only On Backrest With Storage Compartment Or Backrest Back Cover, 2/3 Right Side
- Sewn Into Cover
- For Attaching The Cover Into The Storage Compartment Cut-Out Or The Backrest Cover
- Molding
- Sewn Into Cover
- For Engaging The Cover In The Backrest Shell
- Plugs
- For Securing The Cover
- Quantity: 2
- Lower Padding
- Removing and installing. Refer To UPPER AND LOWER CUSHION, REMOVING AND INSTALLING, BACKREST WITH BACKREST BRACKET COVER OR STORAGE COMPARTMENT .
